Background

Nonprehensile manipulation refers to manipulation not adapted for or not involving antipodal grasping. It therefore leverages a wider variety of primitives, such as pushing, sliding, rolling, and tipping often allowing for certain object interactions that would otherwise be difficult or even impossible with only a grasping primitive. However, this wider variety of primitives can also lead to challenges in robotic sensing and control whereby sensitivities like geometry, mass, and friction become more of an issue.

Shelves present a unique challenge in robotics as their confined spaces often limit manipulability and graspability of the objects inside. These challenges are present in real-world scenarios, especially in dynamic environments like kitchens, warehouses, and retail spaces, that demand versatile interactions.

Objectives

In this project, my team and I investigated a shelf organization task and planned efficient robot-pushing motions, enabling the reorganization of boxes leaning on a shelf to create space for an additional box. Given the first box is placed vertically and the second box is placed at a random angle, the task is to plan a nonprehensile push motion to tilt the second box until it is vertical, allowing for a third box to be placed.

Method

We first categorized the possible box configurations within the project scope into 4 cases:

• Case 1: Indicates there is space to insert a third box with no collisions (boxes 1 and 2 are treated as obstacles)

• Case 2: Indicates the third box can be placed by treating boxes 1 and 2 as movable rigid bodies

• Case 3: Indicates there is no space in the current configuration for the third box to be placed. The robot must execute a nonprehensile pushing motion to create space for the third box.

• Case 4: Indicates all three boxes are in the goal configuration: vertical orientation inside the bookshelf.

Fig. 1: Examples of cases 1-4 (from left to right). The blue highlighted region indicates a space large enough to place the third box.

Fig. 2 illustrates the general pipeline of our framework. We learned a classifier that determines whether of not a box can be successfully placed in a target location given a depth image of the environment. The classifier was trained on depth images collected from simulation of the scene initialized with different box configurations. The images were automatically labeled by first checking if all three boxes were within the boundaries of the shelf at the end of the robot action, and whether the two initially placed boxes had moved greater than a threshold distance.

Fig. 2: General framework of our approach

Sampling-based Approach

I explored our first approach for planning an efficient robot-pushing motion which involved uniform random sampling of contact points on the surface of the box, simulating a push from that location, and evaluating the quality of the push. This approach is uninformed, meaning it does not exploit any specific knowledge of the goal and only makes decisions based on what is immediately visible in the current state. It therefore also does not guarantee a successful push given a certain box configuration. However, it provides a starting point for later, more informed approaches.

We capitalize on the assumption that a physics simulator (PyBullet) can be used within the planning loop to evaluate pushing actions. I first randomly sampled 200 contact points on the inclined box. An end-effector pose was then defined for each contact point using the (x,y,z) coordinates of the contact point and constraining the orientation to vertical with respect to the world frame as shown in Fig. 3.

Fig. 3: Sampling contact points from surface of angled box and defining end-effector pose based on sampled point

The corresponding joint angles were then computed using p.calculateInverseKinematics(). If the current joint configuration was in collision or the IK failed, a zero score was assigned to the attempted push. Conversely, if the configuration was collision-free, the push was executed using a simple motion primitive defined as a straight-line movement along the world frame x-axis, opposing the x normal of the sampled point, effectively pushing against the surface of the box. The heuristic used to evaluate the push was a score proportional to the distance between the final orientation of the box, p, and the goal vertical orientation, q, both represented as quaternions:

Search-based Approach

Unfortunately, the previous approach does not exploit any specific knowledge of the goal to make decisions. To take a more informed approach, I also attempted a search-based method. Similar to the previous appraoch, I use the physics simulator within the planning loop.

I first discretized the surface of the box into a grid of points as shown in Fig. 4. I then used an A* search to find the optimal path to the goal node, which represents the physical location on the box from which to initiate a push. I used a heuristic similar to the scoring function used in the sampling-based approach to define a "cost-to-go" estimation such that nodes with lower cost-to-go estimations will be explored earlier. p is again the final orientation of the box and q is the goal vertical orientation, both represented as quaternions:

Fig. 4: Discretizing box surface into grid of contact points

I again used a straight-line push motion primitive when evaluating push actions but I changed the orientation of the end-effector to be parallel with the surface of the box instead of vertical with respect to the world frame. The discretized points are organized as a numpy.meshgrid. In the planning loop, the successors of each node are simply the eight neighbors of the current node.

Evaluation

We ran 50 randomly generated trials and recorded the average plannning time and success rate. In each trial, the first box is placed vertically, and the second box is placed at a random angle between (-pi/4, -pi/6) and (pi/6, pi/4). We then run 100 steps of the simulation to allow the boxes to settle.

Sampling-based Approach

The uninformed sampling approach achieved a 20% success rate across all 50 trials, and an average planning time of 25.1 seconds.

Fig. 5: Example of a successful push action (score = 0.998)

Fig. 6: Example of a failed push action (score = 0.794)

Search-based Approach

The success rate increased to 78% for the search-based approach and the planning time reduced by approximately 20 seconds, with an average planning time of 5.08 seconds per trial, compared to the sampling-based approach.

Fig. 7: Example of a successful push action (h(s) = 0.0042)

Conclusion

Prehensile manipulation can set artificial limits on the range of tasks a robot can perform. Dynamic nonprehensile manipulation, which leverages a wider variety of primitives such as pushing, sliding, rolling, and tipping, exploits dynamics, thereby allowing for certain object motions that would otherwise be difficult or even impossible with only a grasping primitive. We explore nonprehensile manipulation in a confined shelf environment where various tasks, such as inserting and organizing are difficult when constrained to prehensile manipulation only. We find that our search-based approach performs significantly better than our uninformed sampling approach by increasing success rate and decreasing planning time. For future work, a more sophisticated heuristic could be investigated as well as a more sophisticated push motion primitive.

Background

There have been significant advancements in autonomous vehicle technology in recent years. As more self-driving vehicles are being developed and tested, there is an increasing need for robust controllers and efficient path planning algorithms to ensure safe and reliable autonomous operation.

Objectives

The goal of this project was to:

• Develop an optimal controller for lateral and longitudinal control of a simulated Tesla Model 3 in Webots making use of the kinematic bicycle model, shown in Fig. 1, for studying the vehicle's dynamics.

• Implement the A* path planning algorithm to re-plan the trajectory given a second car is on the track that you must pass.

• Predict the global position and heading from observable states using an extended Kalman filter (EKF) given some localization information is missing.

The car drives around a track with the same geometry as the CMU buggy course. Buggy is a time-honored CMU tradition where students race human-powered, small, aerodynamic vehicles around Schenley Park's Flagstaff Hill. More information on it can be found here. Like buggy, the goal of the controller is to complete the 0.84 mile course minimizing both time and deviation from the course.

Fig. 1: Kinematic bicycle model

Metho:

Discrete-Time Linear Quadratic Regulator (LQR)

I first implemented an infinite horizon discrete-time Linear Quadratic Regulator (LQR) controller for lateral control of the vehicle and a simple PID control for longitudinal control. The error-based linearized state space model for the lateral dynamics is given by:

where e₁ is the cross-track error, or distance to the center of gravity of the vehicle from the reference trajectory, and e₂ is the heading error, or orientation error of the vehicle with respect to the reference trajectory.

The longitudinal dynamics are given by:

Given the A and B matrices, I then discretize the lateral state space model using signal.cont2discrete(system=(A,B,C,D)), where C is an identity matrix with the same size as A, and D is a matrix of zeros with the same size as B. I then tune my Q and R matrices before solving the discrete-time algebraic Riccati equation (ARE) using linalg.solve_discrete_are(A, B, Q, R). Lastly, we can define the LQR gain as:

and compute the control outputs using:

PID Controller for Longitudinal Control

For the PID controller, I define a minimum and maximum speed as speed_min and speed_max, chosen emperically. I then compute the curvature of the track at the current location using the closest waypoint and a waypoint at a certain look ahead distance (also defined emperically), and set the ideal_speed of the car to be max(speed_min, min(speed_max, (1/curvature))). Then, the speed_error is simply (ideal_speed-current_speed), the integrated speed error is total_speed_error, and the derivative of the speed error is speed_error_rate. Lastly, I tune my PID gains Kp, Ki, and Kd, and compute the output throttle: F = (Kp*speed_error) + (Ki*total_speed_error) + (Kd * speed_error_rate).

A* Path Planning for Obstacle Avoidance

Obstacle avoidance is crucial in autonomous vehicle control. In the previous example, there was only one vehicle on the track, but if another is introduced, we must determine how to safely overtake it. For this, I take a very simplified approach where I assume we will overtake the other vehicle in the straight-away so we can re-plan the trajectory once and follow the new trajectory open-loop.

To re-plan the trajectory, we can first compute the H, G, and F values of the known start node, and add it to the open heap queue using heappush(open_list, start_node). I then implement a loop to continue searching the map until the shortest path to the end node is reached. Starting at 7:35 in this video, there is a great explanation of this search.

Extended Kalman Filter Simultaneous Localization and Mapping (EKF SLAM)

Finally, in the previous implementations, we are given the global coordinates of the course trajectory, but these are not always available in real-world scenarios. Localization information from GPS could be missing or inaccurate in tunnels or in close proximity to tall infrastructure. In this case, we do not have direct access to the global position, X and Y, and heading, psi, and must estimate them from observable states in the vehicle frame and range and bearing measurements of map features. I used an extended Kalman filter (EKF) for predicting the distances to map coordinates whose global coordinates are provided.

Let the state vector be:

where there are n map features at global position m.

The ground truth of these map feature positions are static but unknown, meaning they will not move but we do not know where they are exactly. However, the vehicle has both range and bearing measurements relative to these features:

We can assume a closed-form expression for the predicted state as a function of the previous state, and the measurement can be a function of the state and the measurement noise (more info here):

Then, I computed F, the Jacobian of the predicted state with respect to the previous state, and H, the Jacobian of the measurement with respect to the state. I computed these matrices by hand.

With n = 8 map features, F is a (3 + 2n, 3 + 2n) = (19, 19) size array, and H is a (2n, 3 + 2n) = (16, 19) size array.

I then iteratively "predicted and corrected", predicting the state and error covariance, then updating both estimates after computing the Kalman gain.

Evaluation

Discrete-Time Linear Quadratic Regulator (LQR)

The tuned LQR controller completed the track in approximately 120 seconds with a maximum deviation of 4.69 meters and an average deviation of 0.41 meters as shown in Fig. 2.

Fig. 2: Performance of linear quadratic regulator

A* Path Planning for Obstacle Avoidance

I evaluated the performance of my A* implementation with a few arbitrary costmaps as shown in Fig. 3, to ensure it was behaving the way I intended. These maps do not relate to the track but provide a more general evalutaion of the function.

Fig. 3: Performance of A* path planning algorithm on arbitrary costmaps

Fig. 4 shows the performance on the actual track where the yellow in the plot represents obstacles. It can also be seen that we rather naively represent the second car as a large static obstacle. This means this approach works only when the second car moves at the same velocity each race, and that once we pass the second car in the straightaway, we must stay ahead of it to avoid collision.

Fig. 4: Performance of A* path planning algorithm on a section of the track (top) and a GIF of the resulting simulation showing the overtaking of the second vehicle (bottom)

Extended Kalman Filter Simultaneous Localization and Mapping (EKF SLAM)

I tested the performance of my EKF implementation on an arbitrary trajectory as shown in Fig. 5, before integrating it into my Webots simulation.

Fig. 5: Performance of EKF implementation on arbitrary trajectory

The tuned LQR controller with EKF SLAM completed the track in approximately 121 seconds. The maximum deviation increased slightly from 4.69 meters when global position was known to 5.10 meters using global position predictions and the average deviation from 0.41 meters to 0.84 meters as shown in Fig. 6.

Fig. 6: Performance of EKF implementation using previously described LQR controller on Buggy course in Webots

Conclusion

In conclusion, studying controllers and path planning for autonomous vehicles is essential to address the evolving challenges and opportunities in the field and to pave the way for the safe and widespread adoption of autonomous vehicle technology.

Abstract

Deformable object manipulation presents a unique set of challenges in robotic manipulation including high degrees of freedom, complex dynamics, and severe self-occlusion. We investigate these challenges through two approaches: learning a latent dynamics model with point clouds as the state representation for predicting material deformations given a grasp action and training a transformer-based behavioral cloning (BC) framework for predicting action sequences. Both approaches are focused on the task of robotic clay sculpting with a parallel gripper and all data collection and experiments are conducted on a physical robot. Our results demonstrate the effectiveness of the latent dynamics model to capture the dynamics of the clay and, when combined with model predictive control (MPC) and our action sampler, generate a range of simple shapes. However, we find the transformer-based BC framework struggles to learn a comprehensive manipulation policy due to challenges with the highly multimodal nature of the sculpting task. Through these methods and corresponding experiments, we demonstrate the generalization capability of the latent dynamics model and the value of leveraging 3D state representations. The limitations of our transformer-based BC approach reveal the necessity for further research into imitation learning methods for deformable object manipulation that better handle multimodal action distributions in the demonstration trajectories.

Fig. 1: Robotic manipulation of deformable objects has applications in the automotive industry with the complex assembly of wire harnesses, surgical robotics, cooking and service robotics, and the agriculture industry where robots may be handling soft fruits and vegetables.

Methods

We investigate these challenges using the task of robotic clay sculpting and approaching the task with two methods: predicting clay dynamics and predicting actions.

Vision System

Both processes share the same visual data processing pipeline:

• RGBD data from workspace cameras are registered for a full point cloud representation of the clay. We calibrate four workspace cameras and use the RANSAC global registration algorithm to roughly align the point clouds. We then use the iterative closest point (ICP) algorithm for refinement.

• Position and color-based cropping are used to isolate the clay. Due to the top-down images captured from the RGBD cameras, the base of the object is occluded. To form a fully enclosed point cloud shell, we combine the point cloud with a base plane of generated points.

• Point clouds are downsampled to 2048 points using uniform random sampling for faster training.

Fig. 2: Data processing pipeline for point clouds

Latent Dynamics Model

We leverage the tokenizer from Point-BERT, a pre-trained model trained on the ShapeNet dataset, to learn a latent representation of the input point cloud data.

Fig. 3: Point-BERT learns a quality reconstruction of the input point cloud data evaluated using Chamfer Distance (CD)

Within this latent space, we predict how features of each point cloud cluster change and deform and output next-state discrete tokens using a DGCNN token predictor model. The DGCNN predicts how each cluster’s point token changes given a grasp action. The output next-state discrete tokens are then decoded by the Point-BERT dVAE decoder to output a predicted, next-state, fully dense point cloud in real space.

Fig. 4: Latent dynamics model prediction pipeline

Imitation Learning

The transformer-based behavioral cloning (BC) framework predicts a sequence of actions to achieve a goal state. We train two action-chunking transformer (ACT) policies: (1) with input point cloud observations embedded using Point-BERT, and (2) with top-down image observations embedded using the default ResNet encoders. We apply rotation augmentations to the point clouds increase the number of trajectories used to train. Rotation augmentations consist of centering the point clouds on the z-axis and applying a z-rotation with a corresponding z-rotation of the robot end-effector.

Experiments

We collect two separate datasets on a physical Franka Emika Panda manipulator: a random action dataset and human demonstration dataset. The random action dataset is collected by randomly sampling action parameters and executing the generated grasps. A point cloud of the clay is recorded before and after each grasp. The human demonstration dataset is collected using kinesthetic teaching where the human demonstrator controls the end-effector position, rotation, and the distance between the fingertips. A point cloud of the clay is again recorded before and after each grasp.

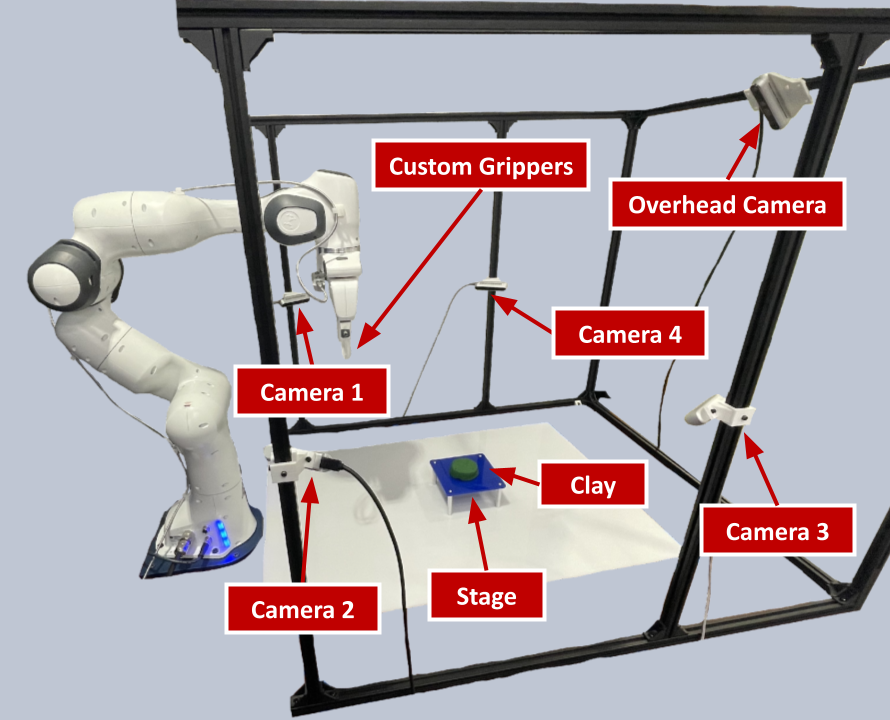

Fig. 5: Data collection hardware setup

During initial data collection, we were noticing the robot grippers would unintentionally pick up the clay rendering it difficult to collect more difficult to collect data in the same trajectory. We designed a small part that would act as an anchor to hold the middle of the clay down to the elevated stage.

Fig. 6: CAD model of the data collection setup with the Franka manipulator, elevated stage for the clay (initialized to a cylinder), and a small 3D printed screw that acted as an anchor to keep the center relatively restrained to the stage

Latent Dynamics Model

We find that the dynamics model effectively captures the dynamics of the clay and predicts next-state.

Fig. 7: Next-state dynamics predictions of the clay evaluated using Chamfer Distance (CD)

We plan action trajectories using model predictive control (MPC) and evaluate the results of different sculpting tasks. The dynamics model trained on the human demonstration dataset had a 16.1% lower mean chamfer distance than the dynamics model trained on the random action dataset.

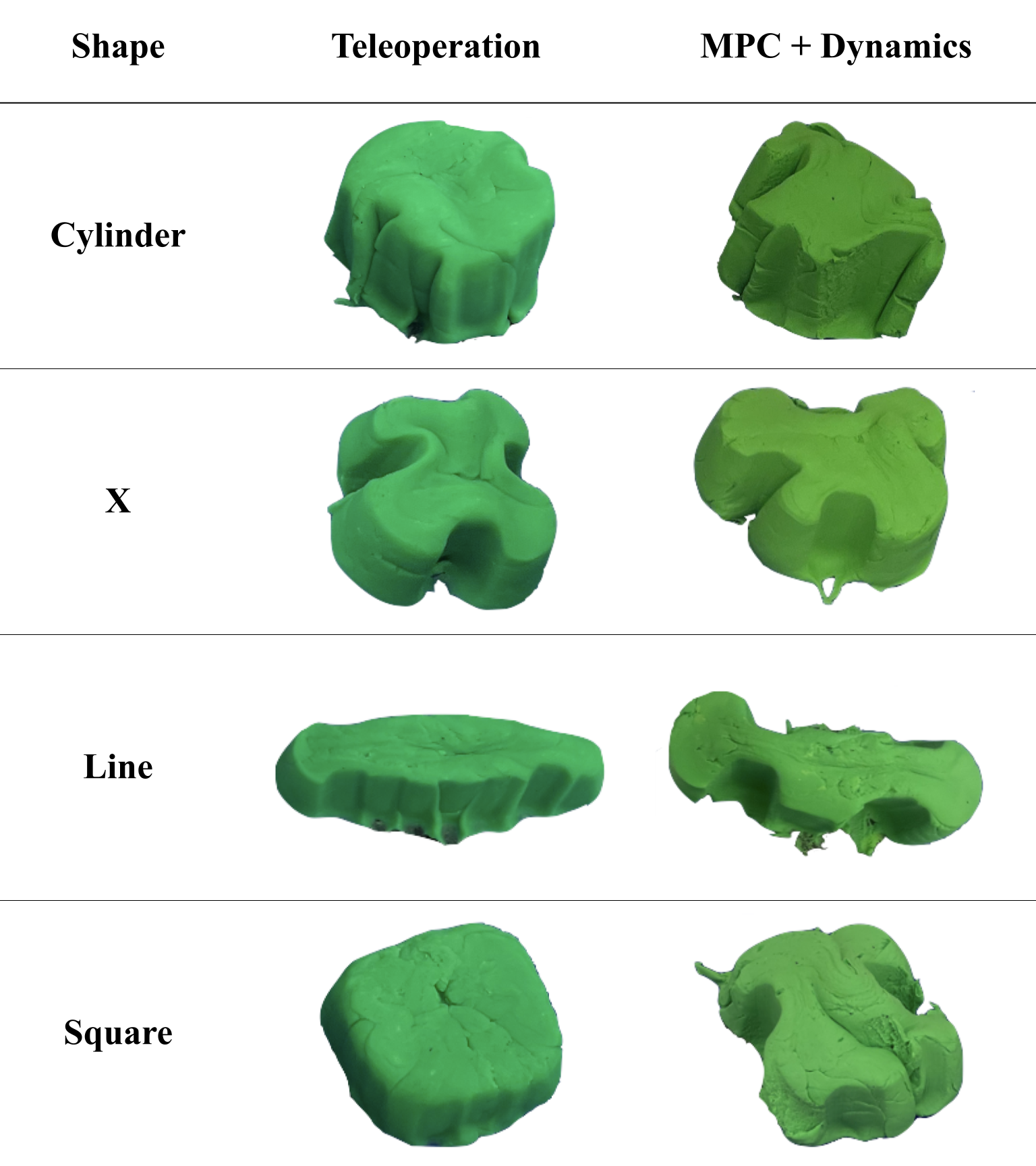

Fig. 8: Real-world shapes created by human (left) and human demonstration trained dynamics model combined with MPC and geometric sampling (right)

Imitation Learning

The transformer-based BC approach struggles with multimodality in the demonstration trajectories. Both of the trained ACT policies converge to repeating the most common action from the demonstrations regardless of state observation.

Fig. 8: Target shape (left) and poor results from ACT policies trained on images and point clouds, as compared with a human demonstrator (right)

Background

This project attempts to quantify the human-likeness of sound produced by a humanoid robot. Humanoid robots are often designed to interact with humans in various settings, such as homes, workplaces, or public spaces. Therefore, human-like sound allows robots to communicate with humans in a more natural and intuitive way improving user interaction and social integration. The robot we used has no speakers and produces sound from a variable pitch pneumatic sound generator and resonance tube deformed by a series of servo motors along its length as shown in Fig. 1.

Objectives

Our goal was to quantify the human-likeness of audio produced by the robot such that we can use this metric to rate each sound and iteratively update the robot's hardware to produce a more human-like sound.

Fig. 1: Humanoid robot mouth used for this project

Audio Processing

The way in which data is processed before inputting it into any kind of machine learning or deep learning model is fundamental. In the domain of audio, there are several concepts that aid in data pre-processing.

Mel Spectrograms

Digital representations of audio signals most often begin as the relationship of amplitude and time. However, to extract useful information from these signals, a Fourier transform can be applied to decompose a signal into its individual frequencies and their amplitudes and therefore convert from the time to frequency domain.

Fig. 2: Example audio signal represented by signal amplitude in the time domain as well as in the frequency domain after applying a Fourier transform (Image Source: insightincmiami.org)

Most speech and music signals are non-periodic. This means that to represent these signals in the frequency domain, a Fast Fourier Transform (FFT) is performed over several windowed segments of the signal. What results is called a spectrogram. Spectrograms are visualizations or figures of audio that represent the spectrum of frequencies over time for an audio recording.

If frequency is converted from Hertz to the Mel Scale, a representation of frequency that mimics the perception of sound by humans and hence why it is used often in machine learning, the spectrogram is called a Mel Spectrogram.

Fig. 3: Example Mel Spectrograms of a human (left) and our mouth robot producing a high-level tone

Mel Frequency Cepstral Coefficients

The Mel Frequency Cepstrum (MFC) is a discrete cosine transformation (DCT) on the log of the magnitude of the Fourier spectrum which is obtained by applying a Fourier transform on the time signal. MFCC’s are coefficients that collectively make up an MFC. MFCC's visually represent features of the audio remarkably well and therefore can be input into a convolutional neural network for classification.

Fig. 4: Example Mel Frequency Cepstral Coefficients of a human producing a dipping tone (left) and a falling tone (right)

Method

Data Collection

We first collected several thousand audio recordings from the robot. To construct the dataset, we first structured each data point as a sequence of 3 varied pitches with a repeating open and closed actuation of the mouth. We then populated each sequence with an initial guess of the relative pitch values of a high-level, rising, dipping or a falling tone, then labeled them as such. We executed these tones on the robot and recorded the audio output. There was an equal class distribution in these data.

Fig. 5: Data collection and automatic labeling process

Data for human audio recordings, which we also experimented with, were sourced from the Tone Perfect database. Tone Perfect includes 9,840 audio files representing 410 monosyllabic sounds in Mandarin Chinese each recorded from six speakers using four different tones: high-level tone, rising tone, dipping tone, and falling tone. We used 4,500 of these audio files.

Data Augmentation

The iteration time for updating the robot hardware to test different configurations in the hopes of obtaining a more human-like sound would be long. Therefore, we chose to augment data from the robot in different ways to speed up iteration cycles.

1. The data augmentation process included first compressing the audio signal from three seconds to one second.

2. Due to a shortened wavelength when compressing the audio signal, this resulted in an increased pitch. Each audio signal was then pitched down by 1.5 octaves to return to its original pitch. This was based on human perception of the original pitch and was not quantitatively computed.

3. The pitch shifting operation caused the decibel level of each signal to be reduced significantly so each signal was increased by 15 decibels.

4. The pitch shifting operation caused the decibel level of each signal to be reduced significantly so each signal was increased by 15 decibels.

5. A mic pop at the beginning of each audio signal was removed and A 0.25 second fade in/fade out effect was added to each audio signal to mimic the change in volume that may occur when a human opens and closes their mouth.

Fig. 6: Waveplots of example raw robot audio signal and augmented audio signal

60 MFCC’s for each audio signal were then computed using the librosa sound processing library, zero padding was applied to ensure square format, and then they were input into the model.

Model Architecture

The CNN architecture we used was adapted from sound-mnist and has 3 convolution layers with relu activation and batch normalization after each layer. Then a max pooling layer and dropout followed by 3 fully connected layers the last one having softmax activation.

Fig. 7: CNN architecture used for all experiments

The goal of the model was to learn from MFCC's based on audio produced by humans, specifically 4,500 signals from the Tone Perfect database, and be tested on 1,120 MFCC's based on audio produced by the robot to determine if the robot sounds were human-like.

We wanted the model to generalize enough such that it could maintain high accuracy given a validation set of MFCC's that may look very different from what it was trained on, but still reflect the human-likeness of the validation set through its softmax output predictions: high value predictions for human-like sounds and low value predictions for non-human-like sounds. This, however, proved to be a difficult goal.

Evaluation

We first show here four examples of the MFCC’s that the model learned and was tested on.

Fig. 8: MFCC's visualizing four tonal inflections produced by a human (left) and our mouth robot (right)

Training and Testing on Robot MFCC's

We first split the 1,120 robot MFCC's with 80% (880 MFCC's) for training and 20% (220 MFCC's) for validation. When trained on 880 robot audio signals, the validation accuracy was 92.4% as shown in Fig. 9. This proves the model can successfully classify robot MFCC's when trained on them with high accuracy validating the choice of model architecture for the remaining experiments.

Fig. 9: High model performance when trained and validated using only robot MFCC's (Hyperparameters used: Adam optimizer, Learning rate = 0.0001, Epochs = 30, Batchsize = 20)

Training on Human MFCC's and Testing on Robot MFCC's

For this experiment, we used all 4,920 human MFCC's for training and validated the model using all 1,120 robot MFCC's. This time, the model had difficulty recognizing features in the validation set and yielded a 25.00% accuracy.

Fig. 10: Poor model performance when trained on human MFCC's and validated using robot MFCC's (Hyperparameters used: Adam optimizer, Learning rate = 0.0001, Epochs = 50, Batchsize = 20)

At around 33 epochs, the validation loss became greater than the training loss, as shown in Fig. 10, which provides an indication of overfitting in the training data. The training accuracy was above 99% which is another indication the model began to overfit the training data and is therefore unable to generalize. This resulted in heavy overprediction of class 3.

The model was then retrained on the human audio signals with 30 epochs, as shown in Fig. 11, in an attempt to limit overfitting. The model performed slightly better with an accuracy of 25.71% and was able to predict tones beyond class 3 but was still largely overpredicting class 3.

Fig. 11: Poor model performance when trained on human MFCC's and validated using robot MFCC's (Hyperparameters used: Adam optimizer, Learning rate = 0.0001, Epochs = 30, Batchsize = 20)

Conclusion

Future Work

As this was only a semester long project, we weren't able to run all the experiments we wanted to. For future work, we would look more into updating the hardware by either replacing the bagpipe reed with a sound generation mechanism with a larger span of possible pitches or replacing our air pump with one with a larger span of possible speeds. This would all be in an attempt to manually produce a sound that sounds more human-like, before studying which features a neural network uses to classify each tone.

A deep reinforcement learning approach could also be attempted. As the goal of this algorithm is to maximize the accumulated reward, the agent can ignore possible limitations in hardware as it is solely identifying the best possible combination of actions to determine the optimal policy.

The reward estimation could be directly correlated to the softmax predictions of the model, wherein the predicted value of the desired tone is used as the reward for the agent.

Final Word

This is certainly a unique problem and this project is far from complete. Although the results yielded accuracy lower than we had hoped, we were happy to have chosen a challenging project and learned from the time we spent working on it.

Introduction

About half a million children and adults in the United States rely on feeding tubes everyday. There are over 350 conditions and diseases in which enteral feeding may be necessary. Enteral nutrition, or the method of delivering nutrition directly to the stomach or small intestine, is required for anyone who cannot meet their nutritional needs by oral intake but have a functional gastrointestinal tract. The use of enteral nutrition can be due to several factors. Dysphagia, a difficulty to swallow, affects one-third of patients with Parkinson’s disease (PD). Also, maintaining nutritional health can be difficult for people with cystic fibrosis (CF) as well as people undergoing chemotherapy where a feeding tube can offer much needed nutrients and calories.

Skin level devices, often referred to as “G-buttons” or “Gastrostomy buttons” are medical devices designed for enteral feeding. They are inserted through a surgical incision in the stomach called a gastrostomy and interface with a gastrostomy tube through which nutritional formula flows. The quality of devices like the one shown in Figure 1 is crucial to ensuring patient safety and comfort. Further research and development in this field will allow for customer feedback of current products to be addressed. Innovation in the medical device industry in general is therefore crucial in ensuring that the medical needs of all patients are met.

Fig. 1: Schematic of Gastrostomy Skin Level Device

Design

Research and Benchmarking

Following the human-centered design process I first researched and subsequently defined the problem to provide a basis for development. As part of the research phase, I developed a customer requirements table along with accompanying functional requirements, technical interpretations, technical specifications, and metrics.

Table 1: Table of customer requirements each assigned a number and color coded based on priority

Table 2: Table with functional requirements of the product relating to each of the customer requirements (Table 1) as well as a technical interpretation of the requirement

For product benchmarking, a thorough assessment of current technologies that address similar customer requirements was then completed. These technologies included products for purchase as well as several U.S. patents.

Fig. 2: Current Products on the Market: AMT MiniONE® “Family of G-Tubes”

U.S. Patent Application Pub. No. 2006/0052752 was worth noting as it provides a concept design for a gastrostomy button similar to the mentioned products but with some improvements. The design offers a non-balloon internal bolster approach to allow for longer wear time as gastrostomy buttons with silicone balloons must be replaced approximately every three months to prevent rupture due to the concentration of hydrochloric acid (HCI) present in gastric fluid. The design also includes two sets of silicone pleats that act as springs to stabilize the port. An image displaying two views of the patented design are shown below in Figure 3.

Fig. 3: SLD design involving silicone “pleat” stabilizers and non-balloon internal bolster (U.S. Patent No. 8,951,232)

Prototyping

The design process focused on addressing all customer needs especially those involving patient safety and reliability. As part of the design process, several 3D printed prototypes of the design were developed, tested, and iterated upon. One of the first prototypes is shown in Fig. 4.

Fig. 4: Testing of 3D printed prototype for insertion ability with thin metal rod

Although the first prototype was partially validated through testing, a device made of silicone rubber only addresses customer requirement 02 regarding reliability to an extent. Gastric fluid is highly acidic and contains parietal cells that secrete hydrochloric acid (HCI) to inactivate microorganisms (Heda et. al. 2021). Because of this, most gastrostomy skin level devices made from medical grade silicone rubber must be removed approximately every 4 months to ensure the internal bolster does not degrade. However, to achieve long-term durability, a material like polytetrafluoroethylene (PTFE) can be used as it is highly resistant to HCI between concentrations of 0%-37% and is biocompatible.

The first change made to the second prototype was reducing the thickness and width of the panels that make up the internal bolster to reduce overall material so the panels would nicely collapse when stretched. A schematic of the second prototype with labels is shown in Figure 5.

Fig. 5: Labled Schematic of Second Prototype with labels (left) and dimensions, in mm (right)

Other changes made to the design before building the second prototype addressed customer requirements 01, safety, and 05, ability for the device to be low-profile. The external bolster was reduced to a diameter of 12.5 mm from 52.5 mm previously to reduce the overall volume making the device more low-profile. The tether was increased in width to 2 mm as opposed to 1 mm previously to reduce the risk of fracture.

The cap was updated to feature custom threads to ensure they cannot interface with other small-bore connectors that may be in a health care setting. This is a preventative step to ensure patient safety and is outlined in ISO 80369-3: Small-bore connectors for liquids and gases in healthcare applications — Part 3: Connectors for enteral applications, a series of standards developed by the International Organization for Standardization to improve patient safety with respect to small-bore connectors in healthcare settings.

Fig. 6: Schematic of Second Prototype Cap with labels (left) and dimensions, in mm (right)

Evaluation

After designing the new model in Solidworks, it was crucial to investigate areas of stress concentration for this device as the internal bolster is subject to unique force distributions in order to stretch out to fit through the stoma.

Fig. 7: FEA Simulation and Mechanical Properties of Internal Bolster to Identify Stress Concentration Areas

These simulations were used to find stress concentration areas only and were not used to validate specific stress values

To account for the stress concentration areas at the corners in the internal bolster, fillets were added to the CAD model to distribute the stress. The second prototype was 3D printed from Formlabs Flexible 80A. Images of the second prototype as well as testing the internal bolster are shown in Figure 8.

Fig. 8: Testing of 3D printed prototype for insertion ability with thin metal rod

Risk Analysis

Lastly, an FMEA risk analysis table was developed to assess risks in the proposed solution and serve as a tool to further update iterated designs.

Fig. 9: Failure Modes and Effects Analysis (FMEA) for Minimum Viable Product (MVP)

Conclusion

Initial testing of my design showed that the prototype could address several of the customer requirements I outlined at the beginning of the design process. However, by subjecting the prototype to more rigorous testing conditions, like an environment that simulates gastric fluid, I could further address potential challenges and refine the design. Fostering innovation within the medical device industry allows technology to continually advance and meet the diverse and evolving medical needs of all patients.

Background

Kelp forests are currently diminishing off the western coast of the United States and Mexico due to warming waters and overfishing of white abalone. Kelp forests reduce wave energy therefore decreasing the effects of coastal erosion which can wash away homes and the natural coastline. They are also home to large populations of sea lions, starfish, and white abalone. The white abalone diet consists of algae, which abalone clean from rock surfaces on the ocean floor providing an optimal place for kelp to grow. Overfishing of white abalone therefore leads to algae overgrowth and threatens the health of kelp forests.

Fig. 1: (from left to right) Global kelp forest distribution, the decrease in living shorelines contributes to coastal erosion and leaves coastal properties more vulnurable to natural disasters, kelp bed recovery efforts include aquaculture of giant kelp

Objectives

To address the overgrowth of algae due to the decreasing population of white abalone, my team and I designed and built a prototype algae filtration system that mimics the abilities of white abalone to clean rock surfaces of algae. The system would work in conjunction with current efforts to reduce overfishing of white abalone, seed white abalone in restored kelp forests, and require preventative action against climate change.

Fig. 2: Full CAD Assembly of System

Design

Overview

Our algae filtration system is designed to be secured to the rock surfaces in endangered kelp forests via a strong suction cup. It will then be able to clean the rock surfaces of algae using a motor-powered brush located on the bottom of the system. After the brush releases the algae from the rock surface, a motor-powered turbine will produce a vacuum that will pull the now algae-filled water through the filter. Algae will become trapped on the underside of the filter while clean water will exit through a top vent in the external casing. I created all of the following CAD models and assemblies using Solidworks.

External Casing

The external casing is an 11 inch by 7 inch by 4.25 inch enclosure made of Nylon 6/6 as this material has high corrosion resistance and behaves well in marine environments for extended periods of time. This material is also easily injection moldable meaning it would be relatively cheap to manufacture several hundred of these enclosures. The round brush and heavy-duty suction cup can be seen in Fig. 2 as well as the openings in the bottom of the external casing that lead to the filter.

Fig. 3: Brush and suction cup of system

Internal Components

The external casing houses two 12 volt (V) DC motors, a turbine (Fig. 3.5), two simple filters made of mesh, and a 12V 8 ampere-hour (A hr.) SLA battery, shown as the large black box in Fig. 3. The turbine is press-fit onto the output shaft of one of the DC motors while the other DC motor is connected to the round brush.

Fig. 4: Interior components of system

Prototype

The system prototype is a 3D printed 1:2 scaled version of the full system and includes two DC motors, one suction cup, a 2 inch diameter round brush, and a turbine. The battery does not fit inside the scaled enclosure so the DC motors were attached to a 12V power adapter for the final prototype testing presentation. The DC motors are waterproofed with Sugru™ and marine grease. Images of the prototype are shown below in Figs. 4-6.

Fig. 5: 1:2 Scaled prototype

Challenges

I thought it would be most meaningful to our presentation to test the prototype underwater but this meant the DC motors had to be waterproofed. I originally thought sticking them in a food storage container would be adequate but containers I found that fit the motors were very large and would require me to scale the enclosure to fit over them. I then read this article from robotshop.com about waterproofing motors for marine use using Sugru™ and marine grease.

I rolled out small cylinders of Sugru™ and pressed them into all gaps in the external casing and then added marine grease to the output shaft, as shown in Fig. 5, to ensure water does not enter between the casing and the shaft.

Fig. 6: Waterproofing motor

Evaluation

The prototype was tested in a clear container filled with water. The wires from each motor were clamped to the side of the container to ensure they do not come in contact with the water. Each motor was connected to a 12V power adapter to test whether the motors were fully functional after waterproofing.

Fig. 7: System running underwater

Conclusion

In conclusion, our prototype algae filtration system, designed to combat algae overgrowth resulting from the declining white abalone population, has shown promising initial success. However, we recognize the need for more comprehensive testing in an environment more similar to the conditions of a real kelp forest to ensure its reliability. While the current results are encouraging, our focus remains on refining the system through further testing to ultimately develop a self-sustaining system that fosters the growth of resilient and thriving kelp forests.

Fig. 8: Our poster for the project which includes a root cause analysis of the problem, system requirements for the full system design, images and a description of our prototype, and a technical drawing of the assembly

Background

This project was part of Rensselaer Polytechnic Institute's (RPI) Manufacturing Processes & Systems (MPS) course focused on exposing students to common manufacturing techniques used in industry (e.g. plastic injection molding, CNC machining, metalforming, and automation).

Objectives

Each MPS team was tasked with designing a product and writing a technical data package (TDP) outlining every step of the manufacturing process for the product with the intention that if chosen for MPS II, the second half of the course, 500 units will be produced from raw materials in the RPI Manufacturing Innovation Learning Lab (MILL). The TDP includes all information for the product including product component descriptions, a bill of materials, all technical drawings for product components and all assembly fixtures, vises, and molds used in the manufacturing process, and detailed manufacturing forms including simulations run on each part using software like Mastercam and Autodesk Moldflow. The TDP also includes a detailed description of the assembly process including part transfer and quality control, and a brief description of how all 500 of the product will be packaged.

Design

Overview

Fig. 1: Exploded View of Final Design with Labels

Baseplate

The base plate adds weight to the bottom of the assembly such that the user can spin the globe without it tipping over. I designed the baseplate with a 3 inch diameter and 0.25 inch height. It also features a clearance hole for the 6-32 threaded rod and a 0.05 inch chamfer.

Fig. 2: Base plate of product designed for CNC machining from Aluminum 6061

Base Body

The base body is the housing for the 9V battery and power switch. I designed it with constant wall thickness of 0.07 inches and a 3 degree draft on all vertical surfaces to abide by plastic injection molding design parameters.

Fig. 3: Base body designed for plastic injection molding from ABS plastic

The base body also has 4 bosses extruded from its underside such that the base connector disk can be screwed into the bottom of the base body.

The “Rensselaer” text is CNC machined into the part post-plastic injection molding to avoid use of a side-action cam in the PIM mold.

Base Connector

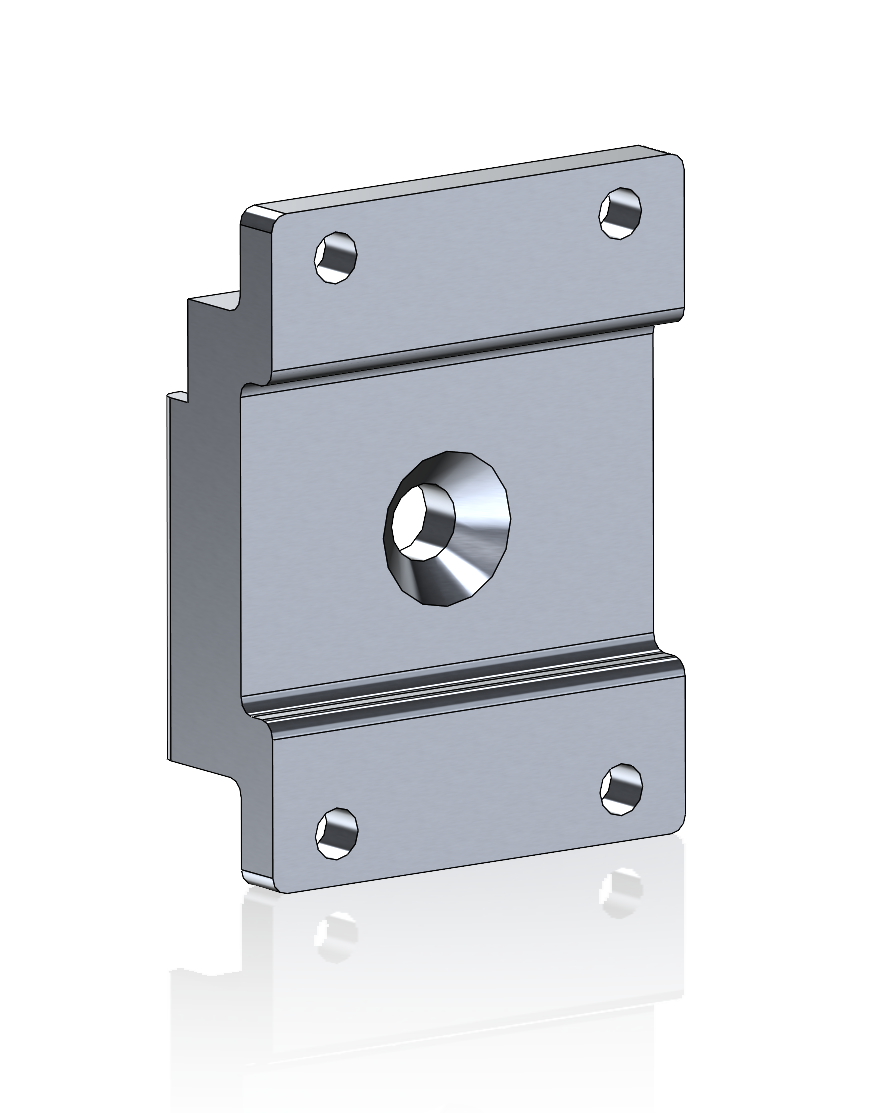

The base connector interfaces with the bottom surface of the base body and is secured by four 4-40 flat head screws. The connector also has a thickness of 0.07 inches such that the mold for it can be implemented into the same mold as the base body. A center boss with a tapped hole secures the base connector to the threaded rod which extends the entire height of the assembly.

Fig. 4: Base connector designed for plastic injection molding

Globe Connector Disk

The globe connector disk is the interface between both vacuum-formed globe halves upon which they are heat staked. The two outermost pins exist for the purpose of heat staking. Similar to the base body and base connector, the globe connector has a thickness of 0.07 inches such that it can be produced using the same mold as the other two parts.

Fig. 5: Globe connector designed for plastic injection molding

An off-centered boss with a 2-56 tapped hole was added to secure the circular PCBa as shown in Fig. 6. Small pins were also added to act as support pins for the PCBa and lift it off the main surface of the globe connector.

Fig. 6: Globe connector supporting circular PCBa

Our project was selected by the MPS instructors for Part 2 of the class, which involved producing 500 units of the globe toy. I graduated from RPI in December 2021, so I wasn’t part of the production phase, but my teammates who stayed sent photos of the completed toys.

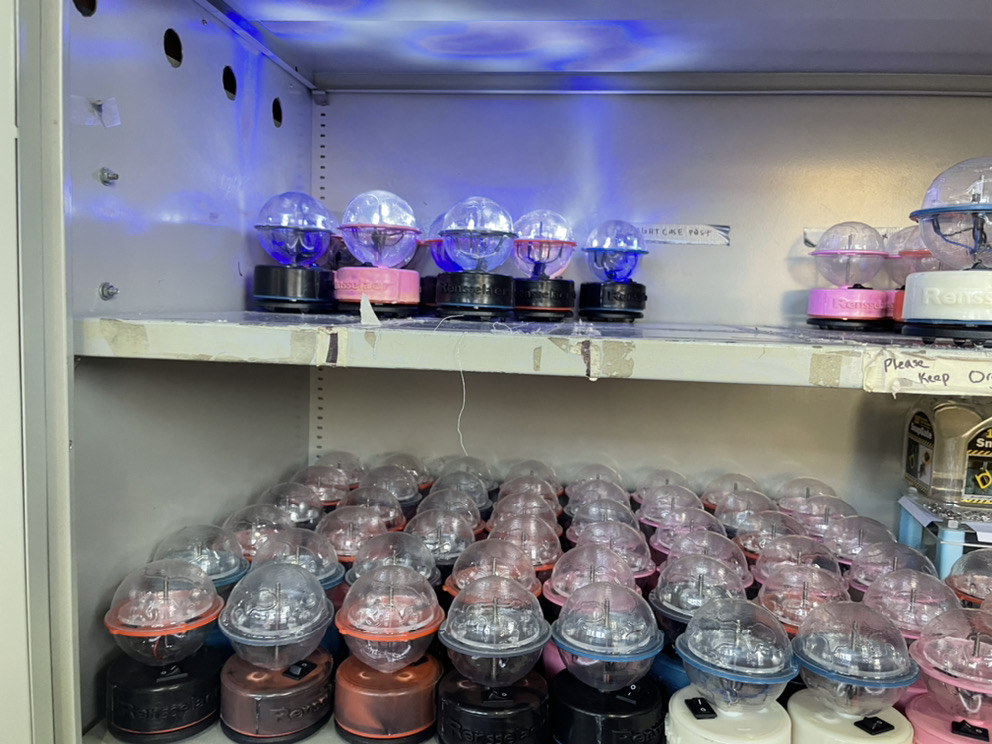

Fig. 7: Globe production line

Fig. 8: My awesome team

Background

I designed and built this testing setup for the Panat Lab at Carnegie Mellon University. In a collaborative effort, the lab is developing a microelectrode array, the CMU Array, fabricated from depositing metal nanoparticles onto a substrate. The long, narrow shanks are then sintered to create conductive paths for bioelectric signals as shown in Fig. 1.

Objectives

The array can be tested in vivo using neural activity (Fig. 2) from anesthetized mice but benchtop testing allows for neural recording sessions using a stimulating electrode to simulate neural activity (Fig. 3) which can reduce variability between experiments and eliminates the need for live animals. Before designing the setup, I outlined 3 main objectives:

Design

To address the first objective, I designed a subassembly for the probe. Two small translational stages (Thorlabs DT12) are used: one is mounted to the elevated stage and allows movement of the arm in the x, and one is mounted to the arm and allows movement of clamped substrate in the z.

Fig. 4: Probe Subassembly

The substrate clamp restricts all movement of the substrate and ensures the electrodes are in the same location for every test. The bottom part of the clamp is permanantly secured to the translational stage while the top part can easily be removed via two captive screws.

Fig. 5: Substrate Clamp

The electrode needed to intercept with the probes at a certain angle and was therefore mounted onto a 3D printed part and clamped into place in a similar way to the substrate: via a captive screw. I press fit an insert into the bottom part of the electrode clamp to ensure the threads wouldn't strip after many uses.

Fig. 6: Electrode clamp shown empty with slot channel for electrode wire (left), placing the wire into the slot (middle), and a fully clamped electrode (right)

The electrode clamp extends from the front camera via a strut channel as shown in Fig. 7.

Fig. 7: Full assembly with side camera, front camera with electrode mount, and probe subassembly

To mount the cameras, I first designed a 90 degree bracket to secure the 3-axis translational stages (Thorlabs DT12XYZ) to the aluminum breadboard. Then, I designed another bracket to mount the round, lens mounting clamp (Infinity Large Mounting Clamp) to the stages. This would allow each camera three degrees of freedom and a secure and minimally invasive way to mount the cameras.

All four of the brackets were first cut from a 1 ft. Aluminum 6061 L bar and manually machined to obtain the cutout for the stages and necessary holes and countersinks as shown in Fig. 8.

Fig. 8: Cutting L Bar and Machining Camera Mounts

The brackets are shown assembled onto the aluminum breadboard in Fig. 9.

Fig. 9: Stage bracket (left) supports entire camera assembly including XYZ stages, camera, and camera mount, front camera bracket (middle) supports camera mount and strut channel, and side camera bracket (right) supports camera and camera mount

I 3D printed all components of the probe subassembly, press-fit inserts into the substrate clamp (Fig. 11) and assembled them onto the laser-cut acrylic stage elevated by hex standoffs. The clear container for PBS is a simple storage container from The Container Store.

Fig. 10: Assembled Probe Subassembly

Fig. 11: Assembled Substrate Clamp

Evaluation:

Camera positioning is crucial for the test as the XYZ stage also moves the electrode wire for stimulating each probe. Example photos I took to test camera positioning are shown in Fig. 12.

Fig. 12: Positioning Cameras

Unfortunately, my internship in the lab ended before I could conduct further testing, but potential future evaluations could involve rigorous testing of long-term stability, real-time data processing capabilities, and correlation studies with in vivo experiments.

Conclusion

The microelectrode array testing setup I designed and built allows for benchtop testing with a stimulating electrode, reducing variability and eliminating the need for live animals.

Background

At one of my internships I sat at a desk right next to an aisleway which sometimes got very busy and distracting. I had this idea that I wanted some kind of separator that also doubled as an organizer for some of the tools I used everyday. None of the desk organizers I could find on Amazon were quite what I wanted so when I got home I quickly modeled my idea.

Objectives

I wanted the design to have an elevated surface for my plant to sit on. This, along with compartments to organize my desk items, would act as a separator between my desk and the aisleway next to my desk. I also wanted the freedom to adjust the size of the organizer in case I ended up needing more space on the desktop.

Fig. 1: Initial CAD model

Fig. 2: Visualization of two sliding compartments

Approach

I used repurposed redwood from an old play structure in my backyard that my dad had recently dissasembled. We first rip cut large pieces of the wood such that they were the correct width and depth for the boards I needed. I then used the table saw to cut grooves in the vertical standing boards for a through dado joint. These joints would better support the shelving than a butt joint.

Fig. 3: Joint used to support shelving

I then assempled all the pieces applying a generous amount of wood glue between each, and clamped them together. After about 48 hours, I sanded the entire strucutre including any excess wood glue from the joints and applied a polyurethane finish to protect the wood from water that might leak from the plant.

Fig. 4: Applying a wipe-on polyurethane finish to protect the wood from water

I am overall very satisfied with how it turned out and used it for the rest of my internship.

Fig. 5: The completed organizer on my desk where I use it to store tools I used daily and display my very quickly growing plant

Background

This project was part of my mechanical engineering internship at Neuralink. The Neuralink implant contains micon-scale threads that are inserted into the motor cortex, a region of the frontal lobe that is responsible for planning and executing motor movements, via a high-precision surgical robot. The robot uses a needle that sews the threads into the brain by first inserting onto a small loop on the end of each thread.

Objectives

The purpose of the implant imaging station is to take a high resolution image of the implant loops to ensure they are all located on the same plane and in a location in space that the robot is able to pick them up. The station also takes two images of the full implant as a visual quality check and documentation before packaging.

Approach

I designed the assembly in Solidworks. The program moves a 2X magnification camera along a translational stage in small increments, taking an image at each step. These images are stitched into a single high-resolution view, followed by two full-field images of the implant, all of which are automatically uploaded to a database. The system automated four previously manual steps of the implant production process.

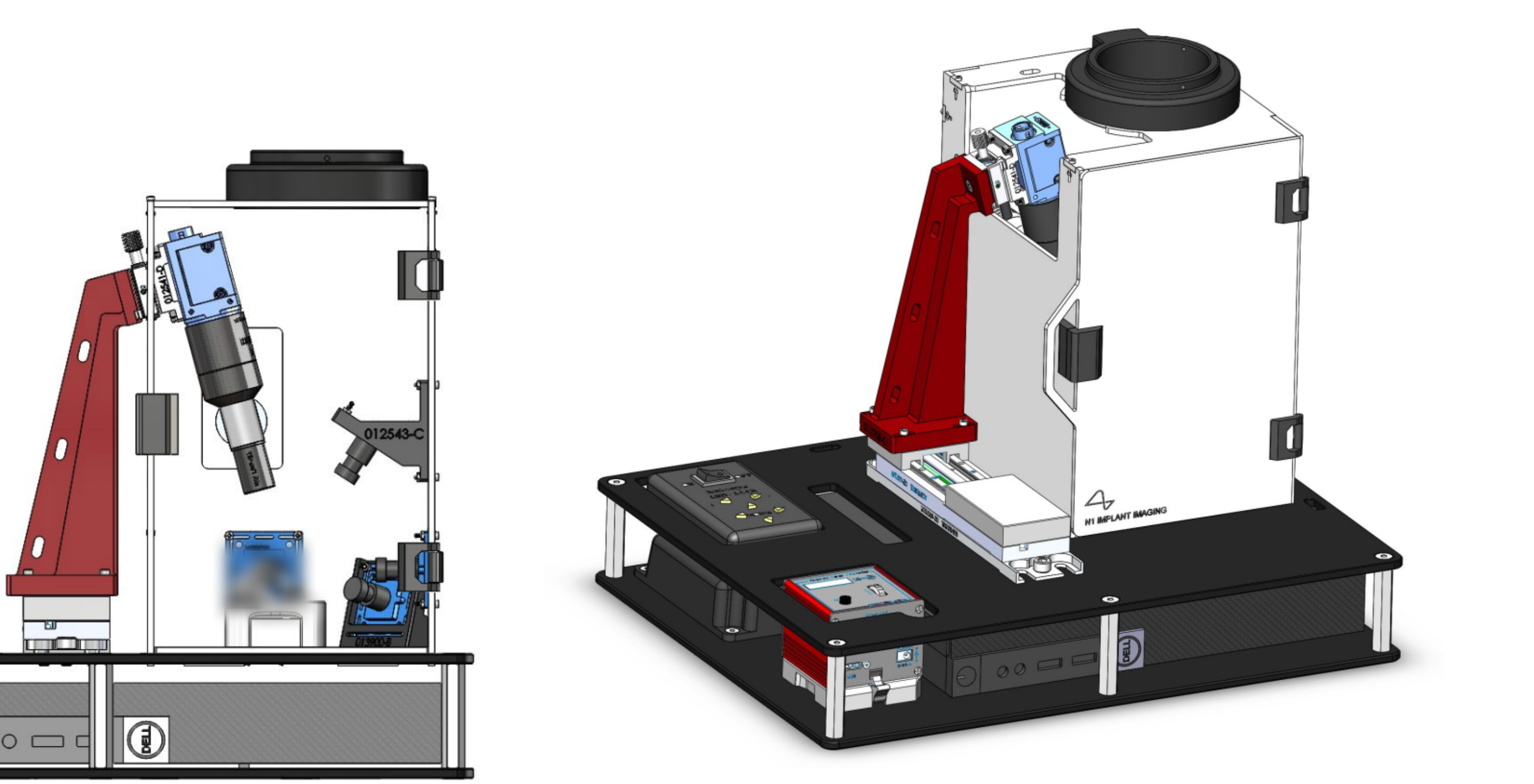

Fig. 1: Full assembly

Components

Baseplates

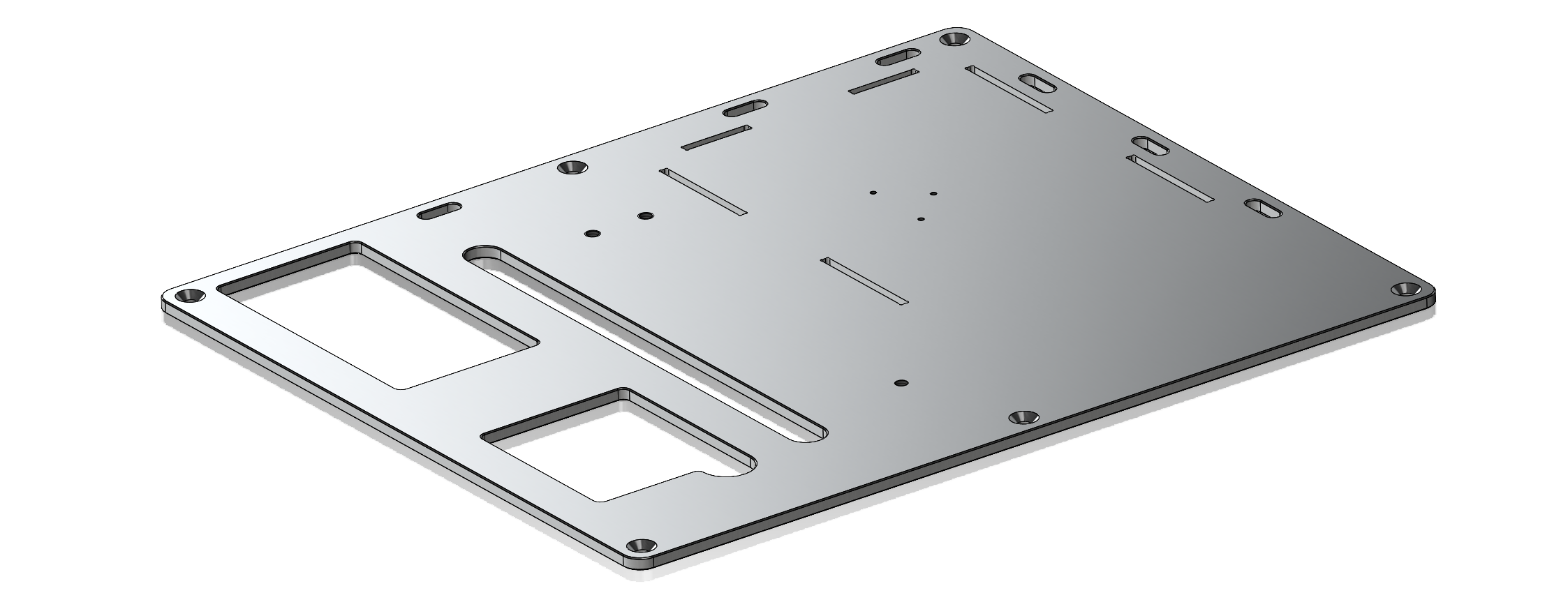

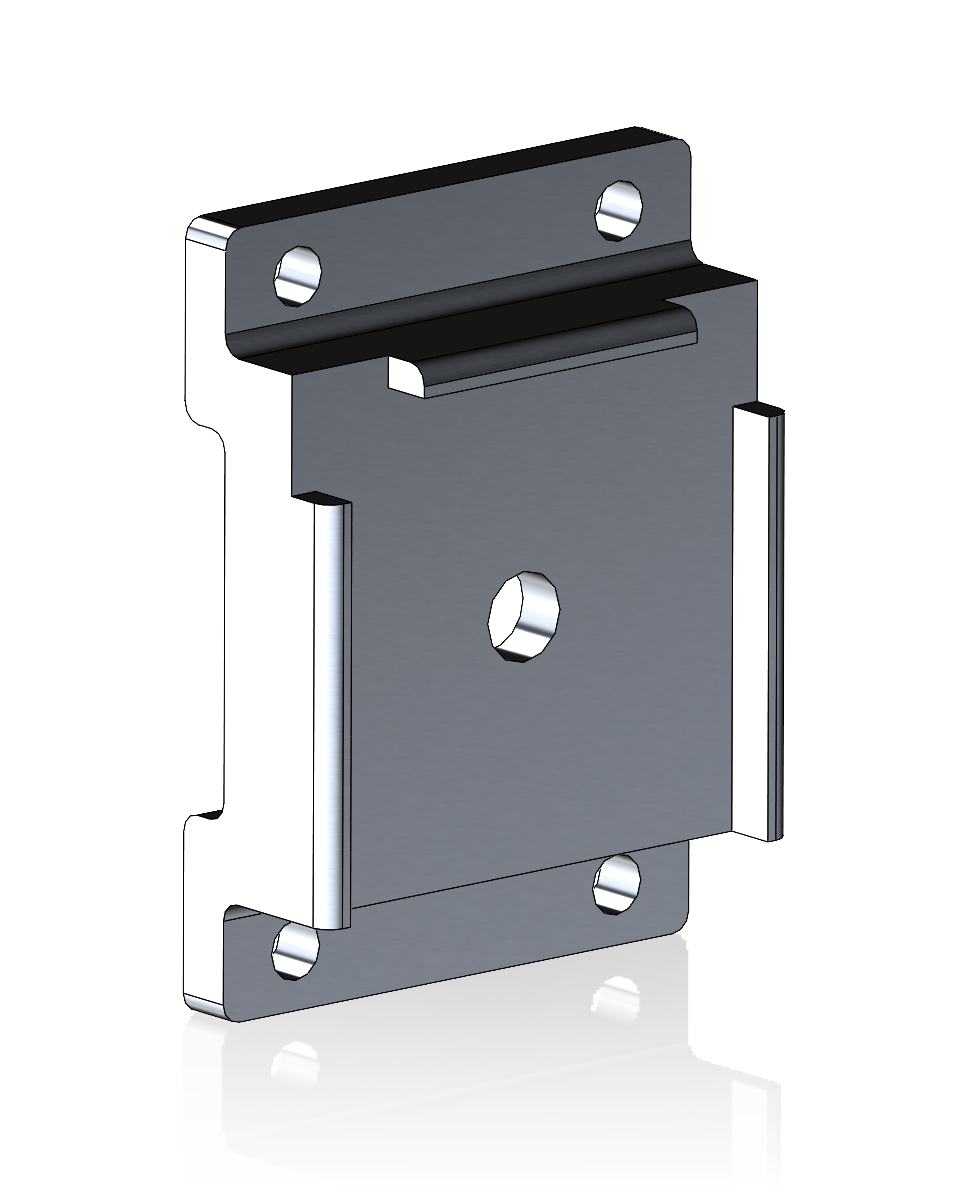

The baseplate serves as the main surface that all components mount to. I designed the part for CNC machining and it is made from Aluminum 6065.

Fig. 2: Baseplate designed for CNC machining

The baseplate includes countersunk mounting holes to fasten the top and bottom plates together, along with integrated tapped holes for securing all hardware. Edge cutouts were added for cable management.

Camera Subassembly

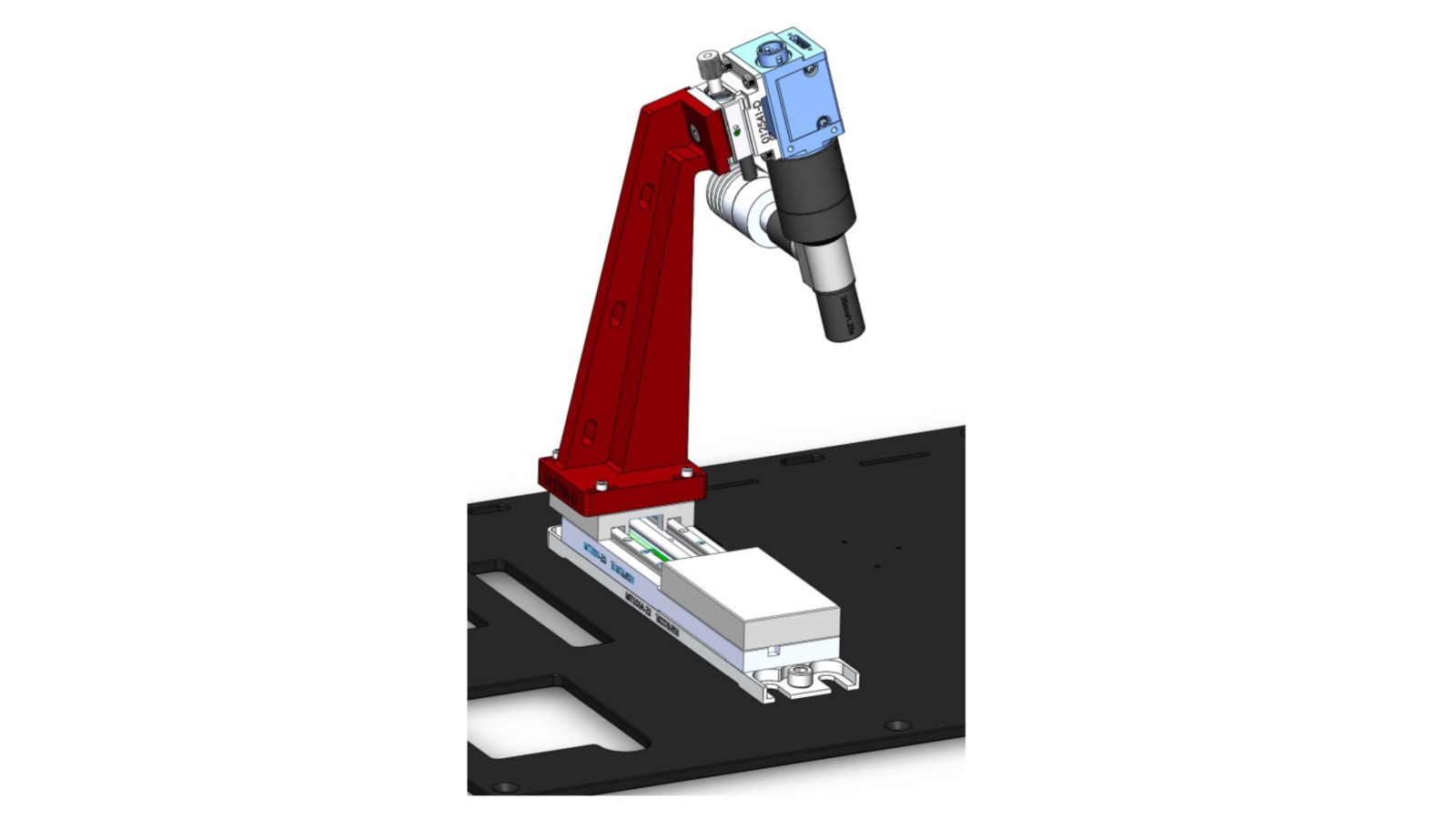

The USB camera subassembly includes a motorized translational stage, camera tower, mount, manual focus stage, USB camera, 1.25X objective, and Coaxial LED spot light.

Fig. 3: Coaxial (brightfield) lighting was used to capture the highly reflective polyamide loops.

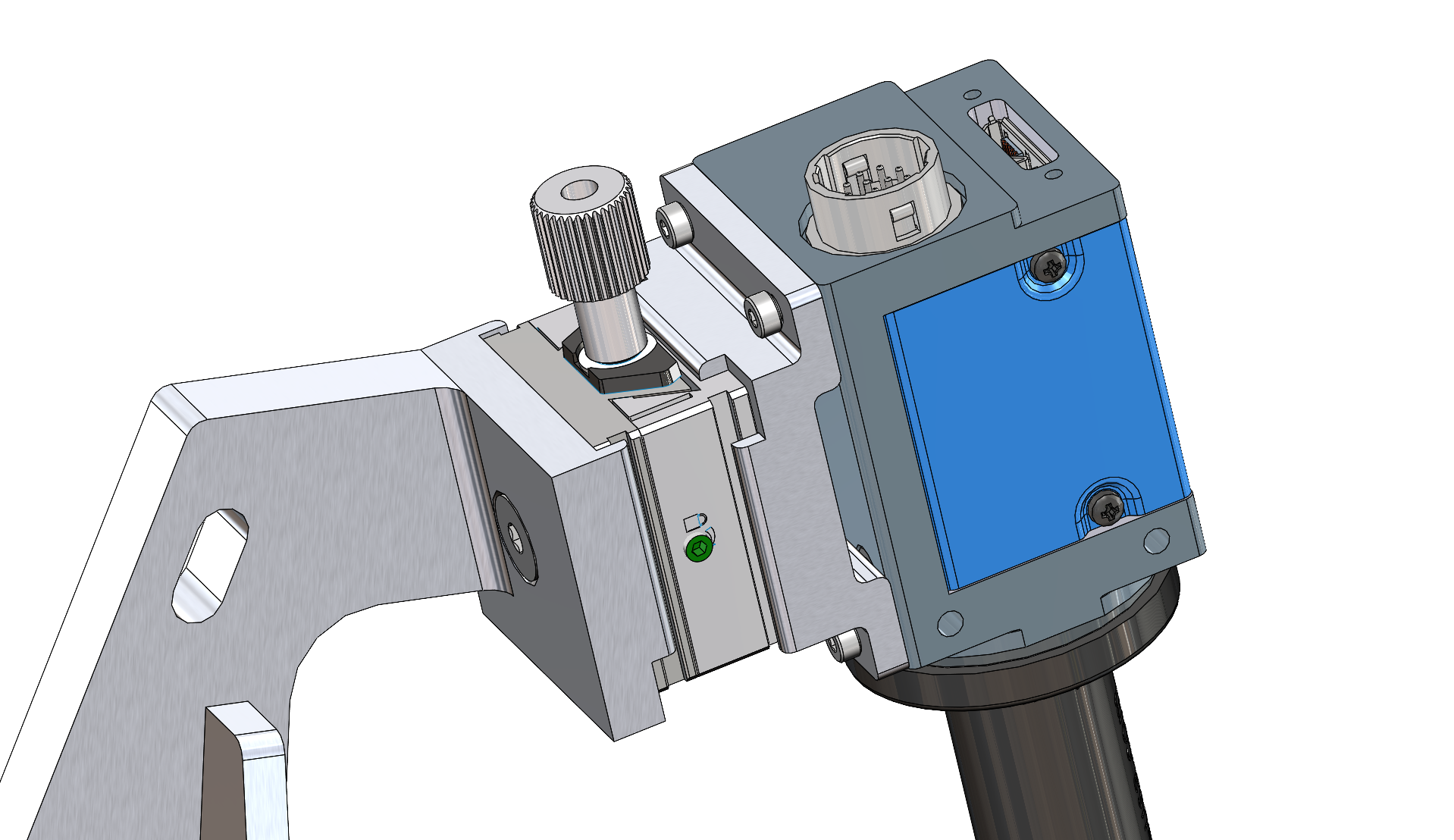

Fig. 4: The USB camera mount attaches the camera to the manual translational stage, allowing for fine vertical focus adjustment.

Enclosure

The enclosure provides a white imaging backdrop and controlled lighting via a mounted ring light. I laser-cut the panels from white acrylic and assembled the enclosure, with cutouts for the moving camera tower and fixed board cameras.

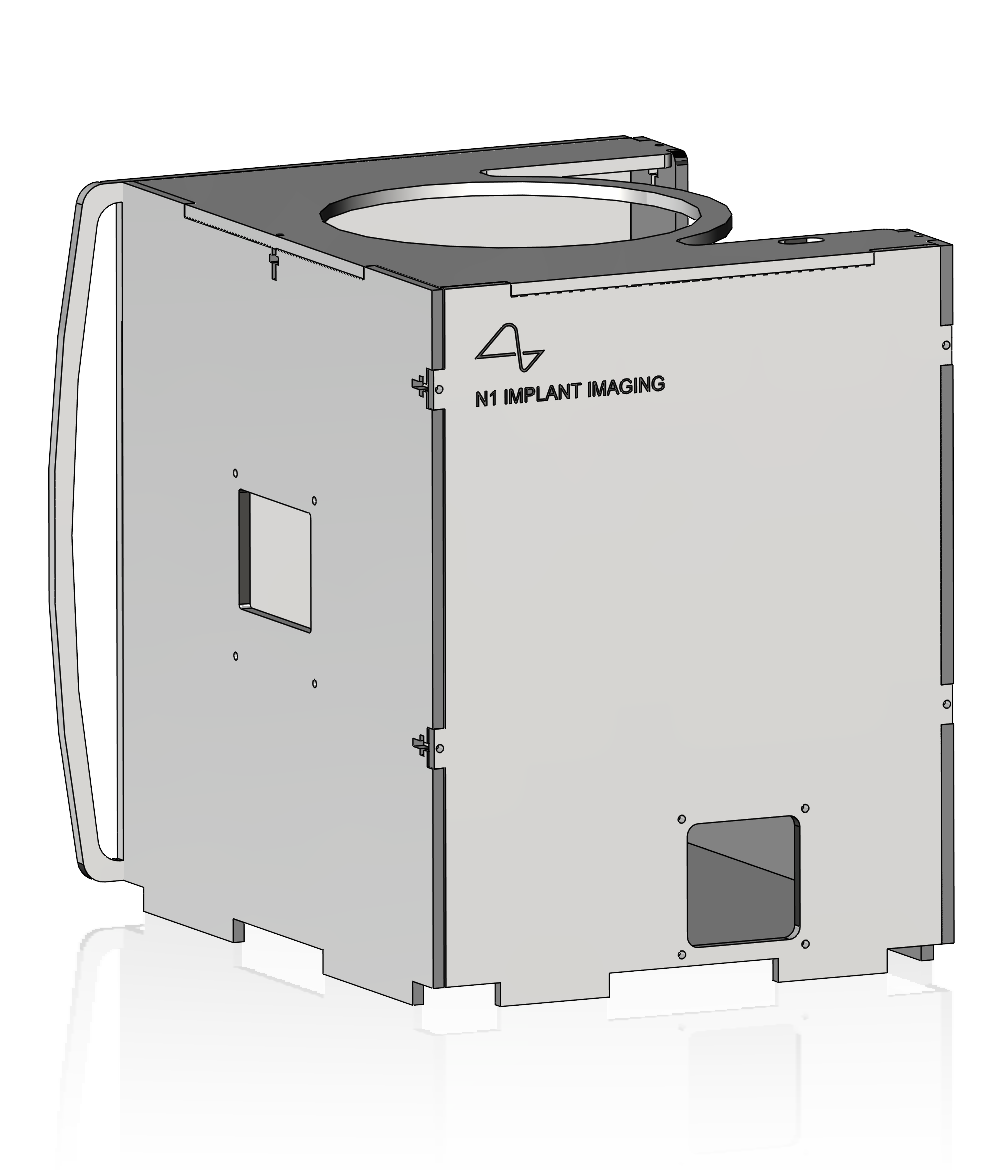

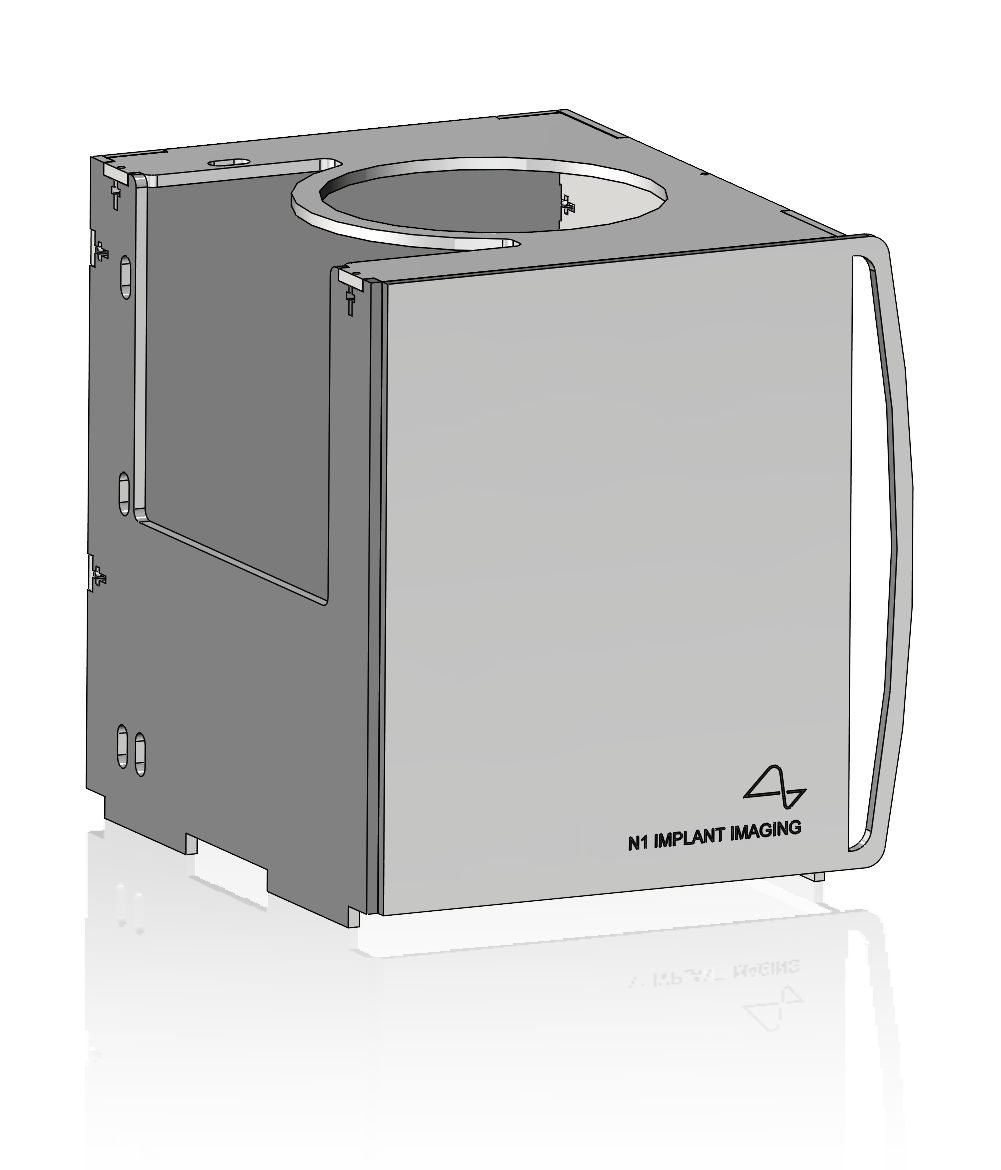

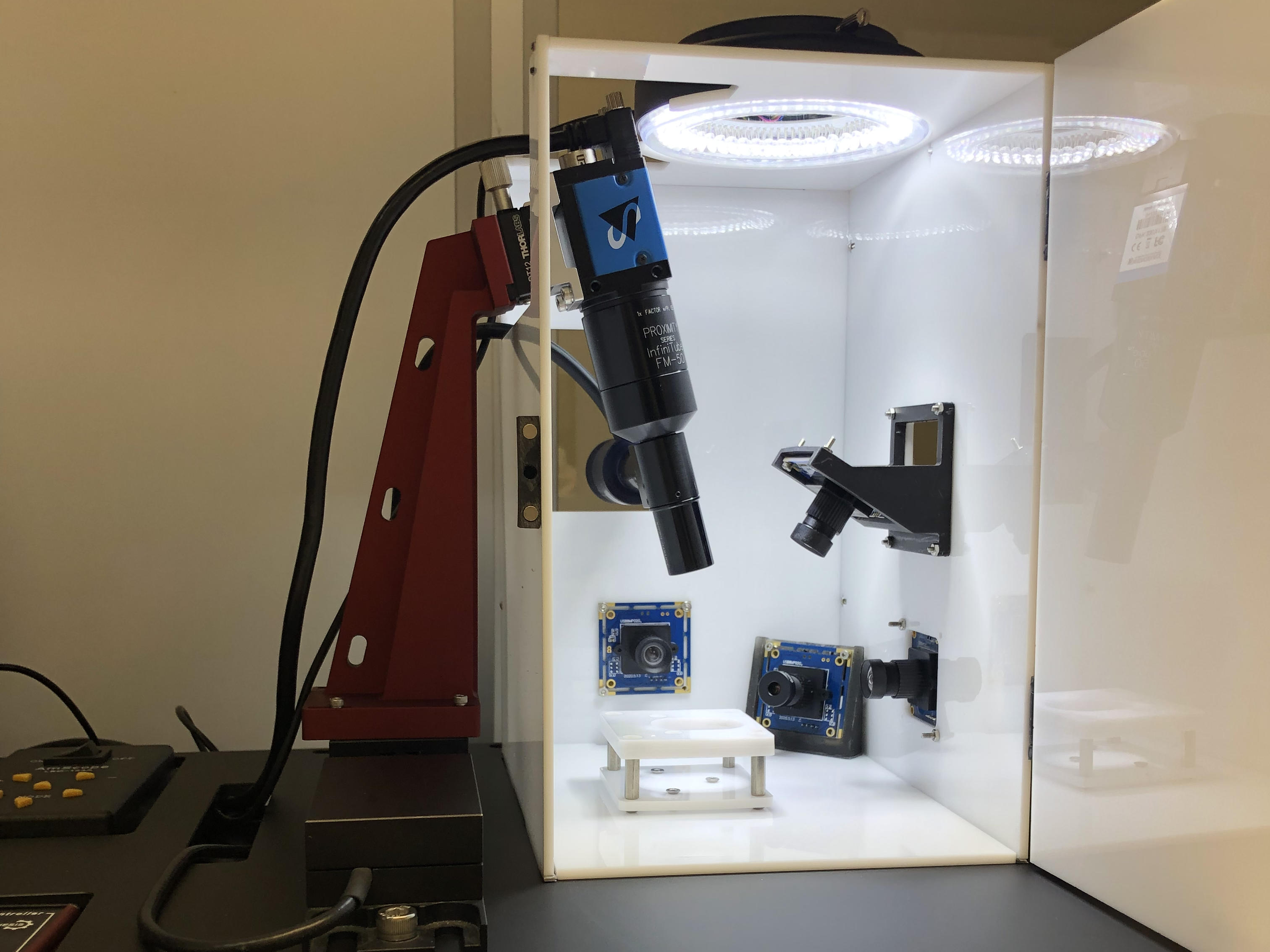

Fig. 5: Enclosure designed for laser cutting and provides white backdrop and controlled lighting for all images

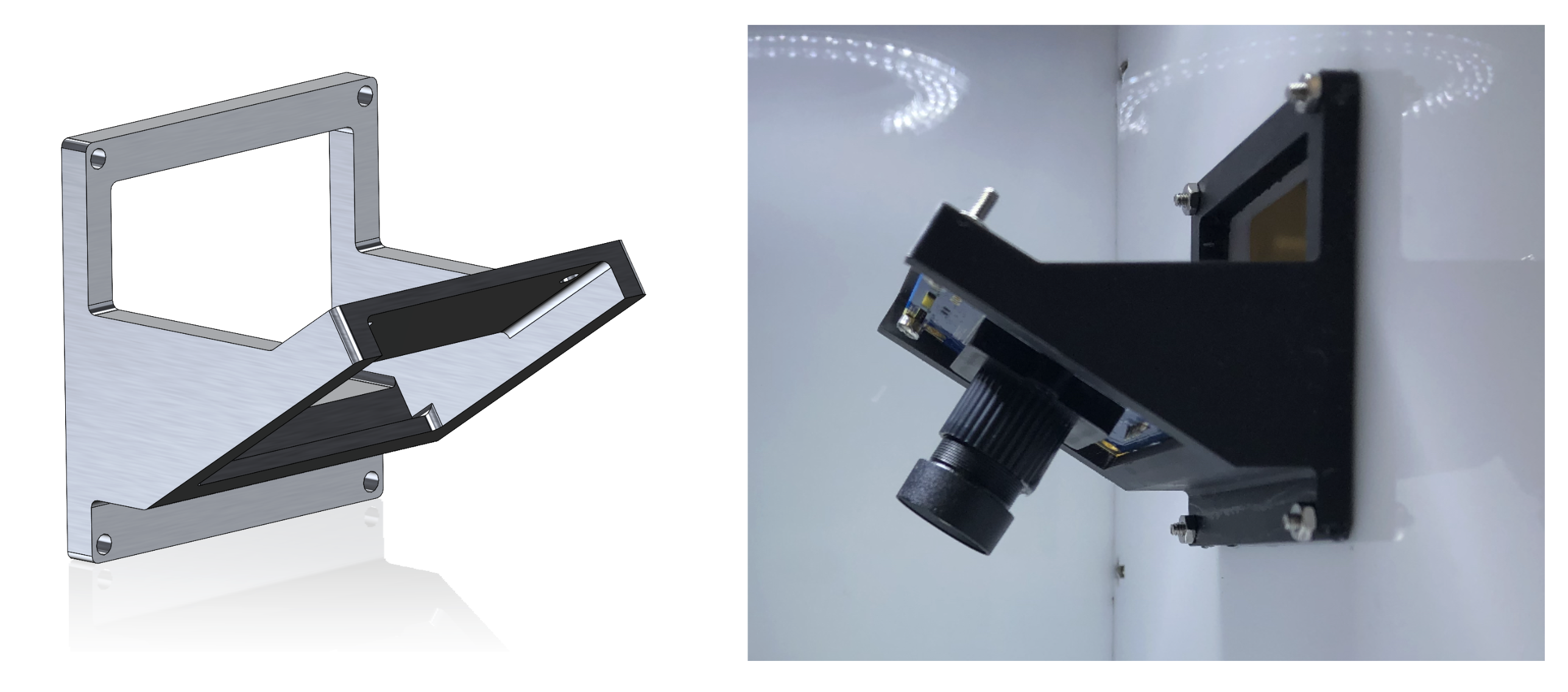

Fig. 6: Angled board camera mount orients board camera at 45 degrees for full images of the implant

System Setup

I installed the fully assembled imaging station on the production line after recieving the machined parts (baseplates and camera tower), integrated the motorized stage and cameras with a PC, and developed the control program to capture, stitch, and automatically upload all images to the database.

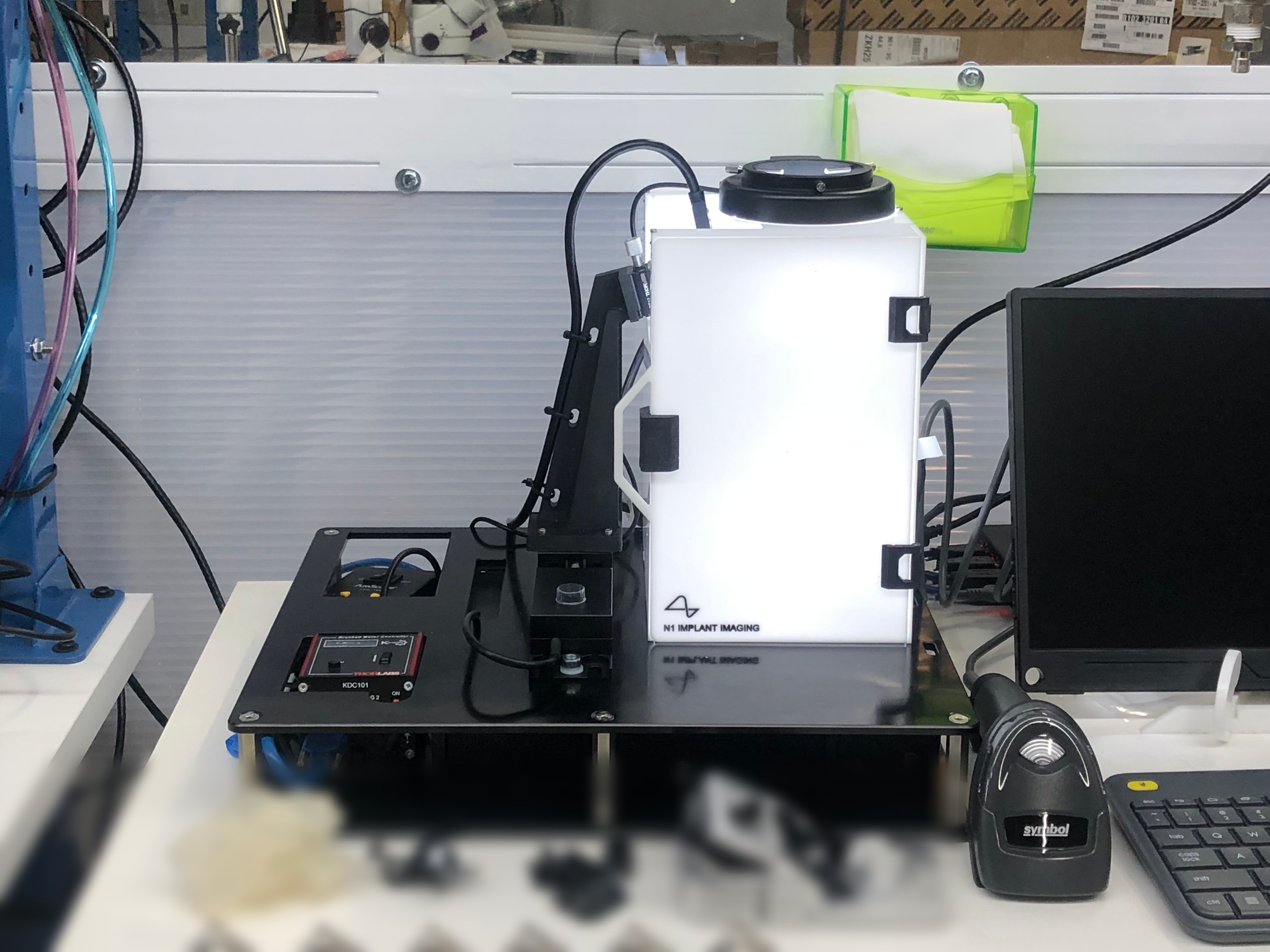

Fig. 7: Imaging station on implant production line

Background

This project was part of my mechanical engineering internship at Neuralink. The existing cleaning fixture, used to clean the microfabricated array threads, was heavy and designed for horizontal processing, which limited cleaning efficiency in chemical baths, sonication, and vapor drying. Horizontal orientation reduces particle removal during megasonic cleaning and hinders proper drainage during vapor drying. The microfabrication team also found the fixture difficult to handle due to it's size and weight.

Objectives

Redesign the cleaning fixture for vertical processing to improve particle removal and solvent flow, reduce fixture weight for easier handling, and maintain precise support and minimal contact for delicate wafers during chemical and sonic cleaning steps.

Approach

I redesigned the fixture with sub-flush faces at the chip and loop regions, and added 45° drafted edges on cover cutouts for improved solvent flow, and added bosses for support with minimal contact also improving flow.

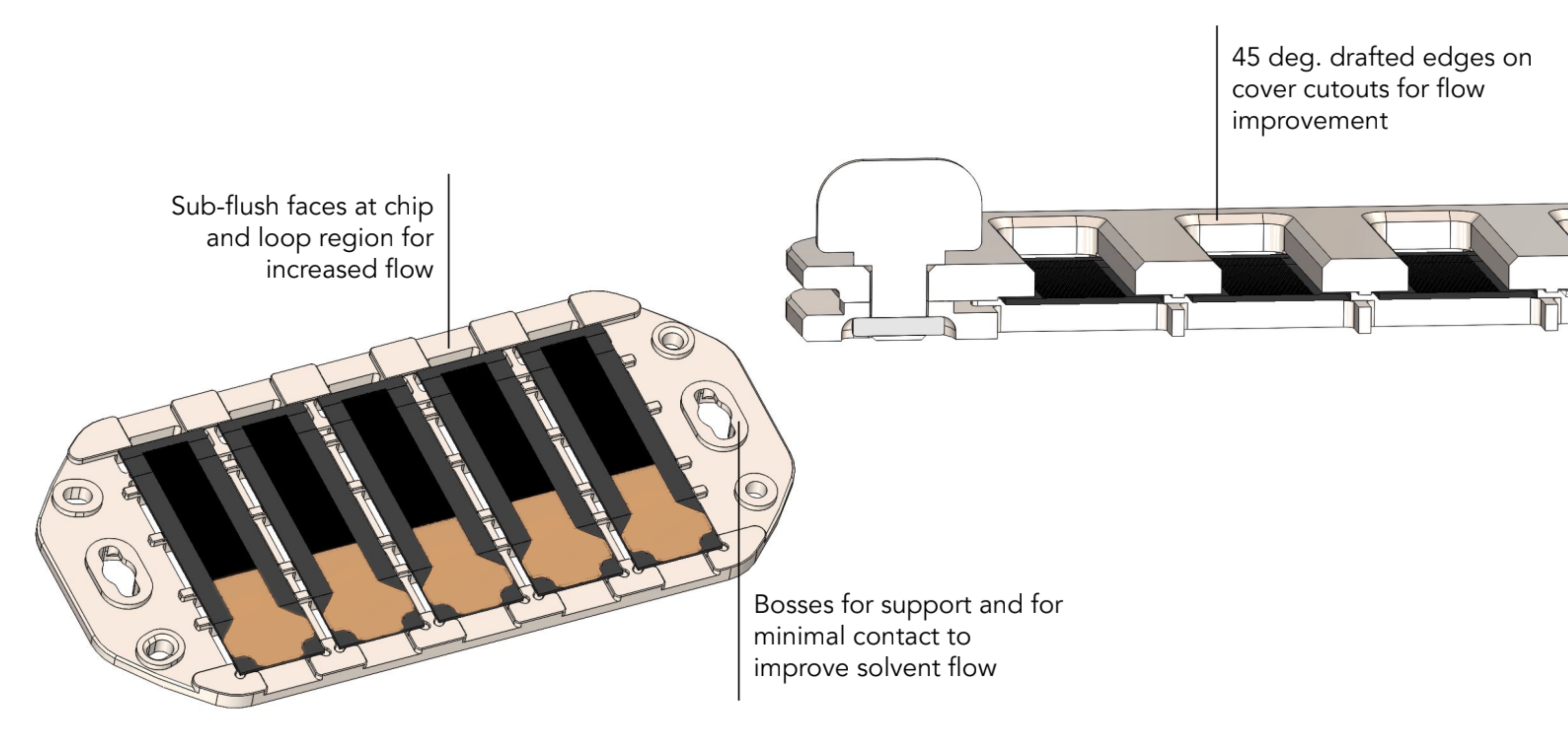

Fig. 1: Features for increased solvent flow

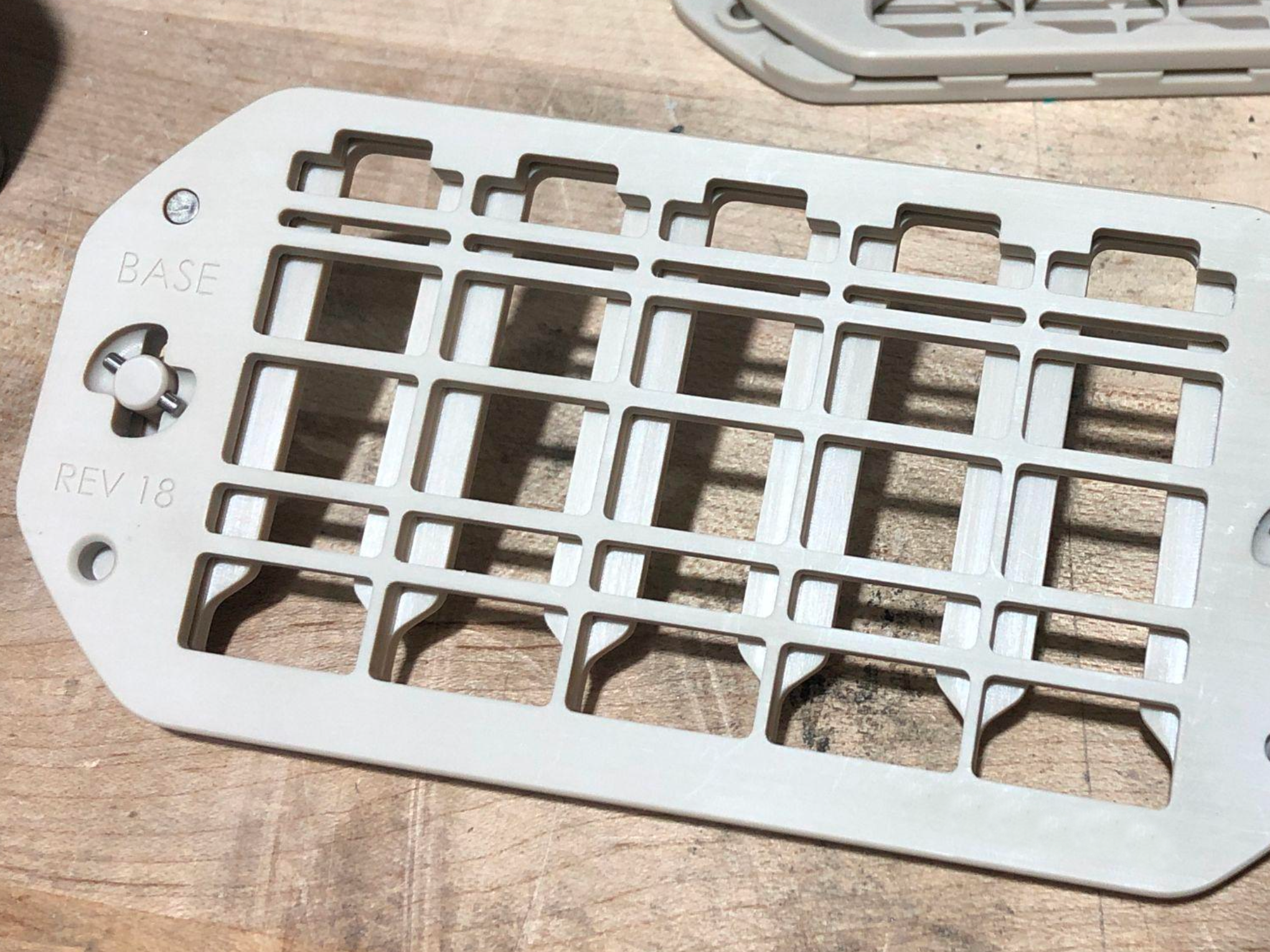

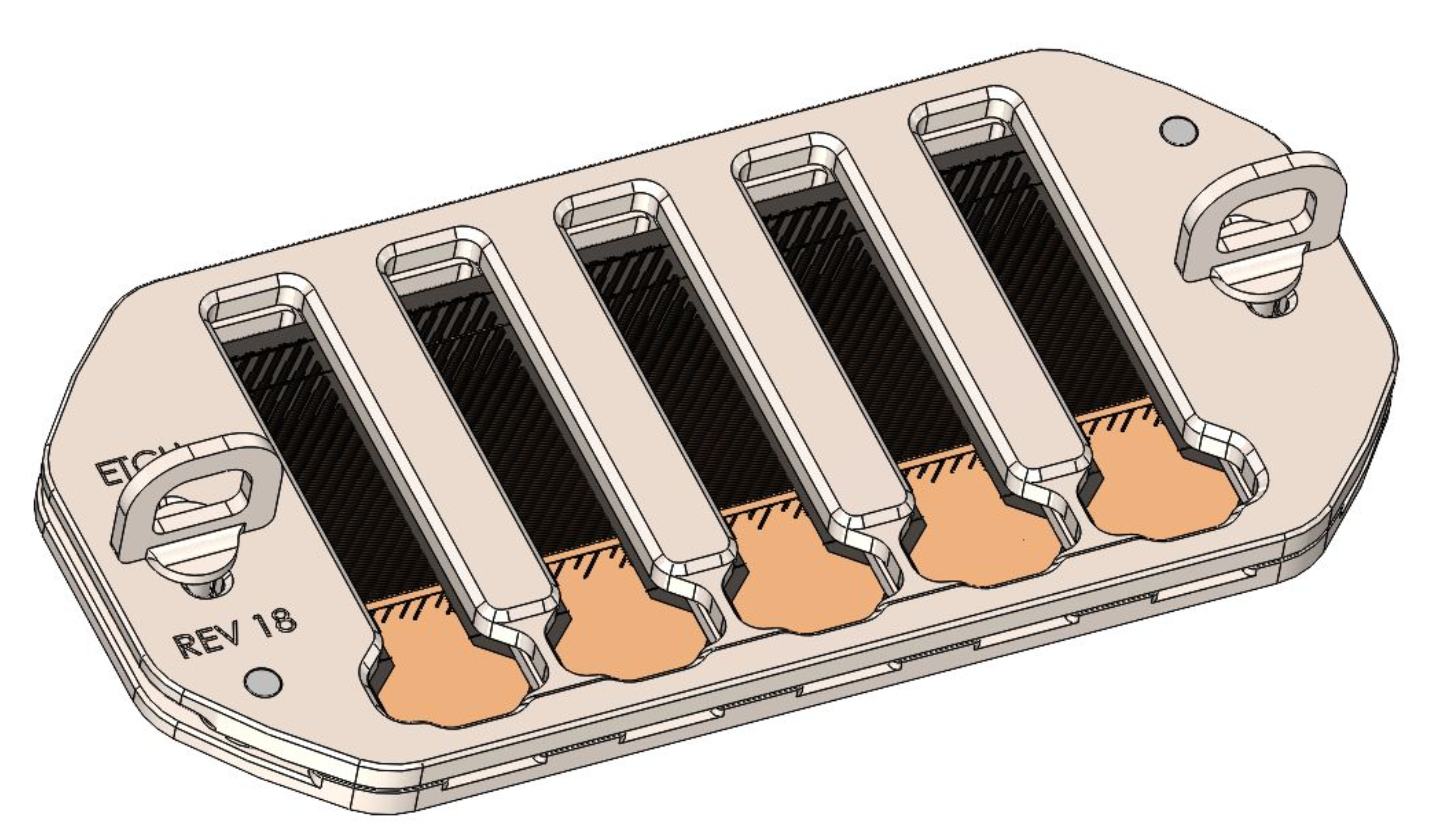

Fig. 2: Redesigned fixture

The fixtures were machined from lightweight PEEK, reducing weight and making them easier for the microfabrication team to handle while maintaining durability and chemical resistance.

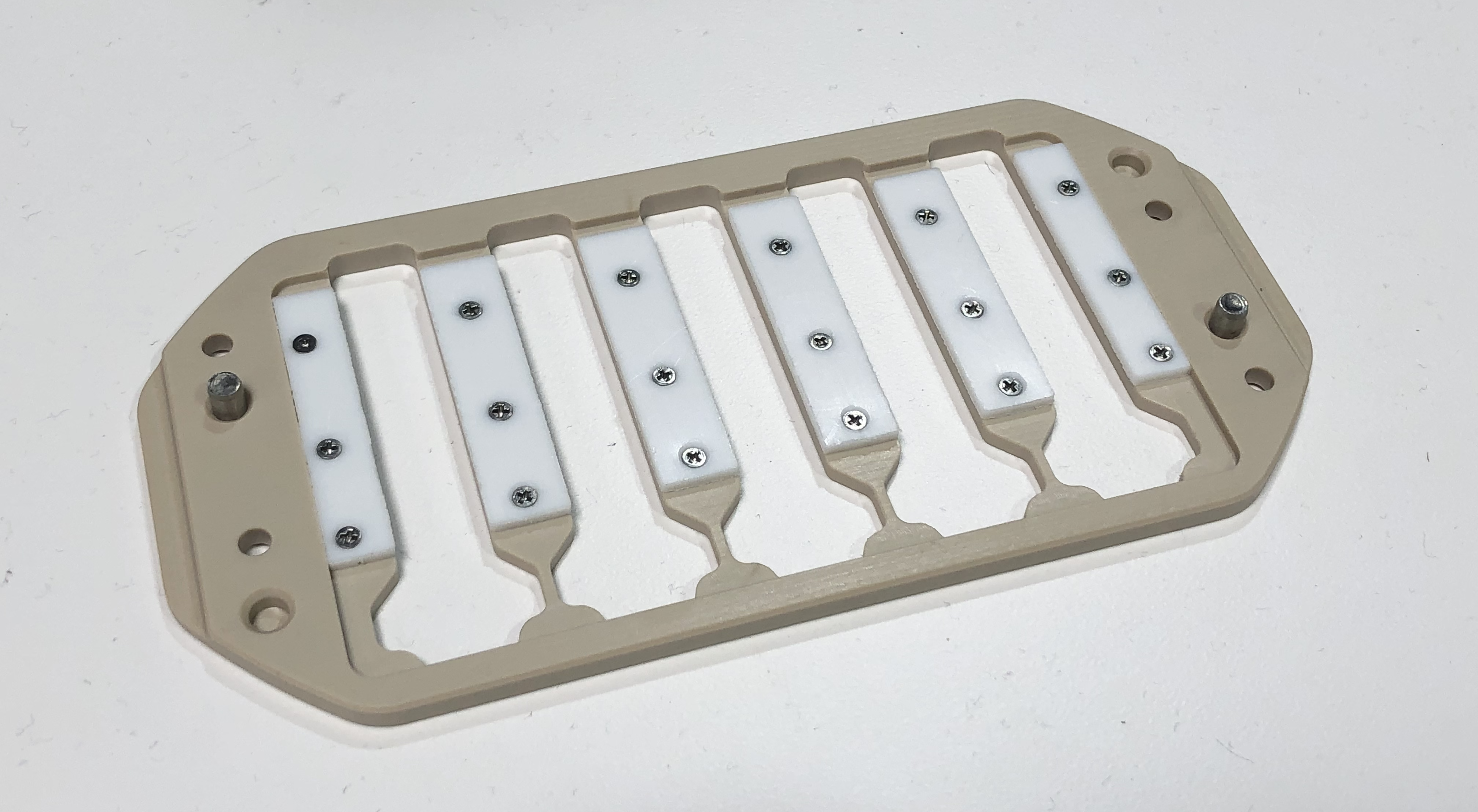

Fig. 3: Fixture cover with press-fit alignment pins and PTFE inserts installed for clamping the wafer

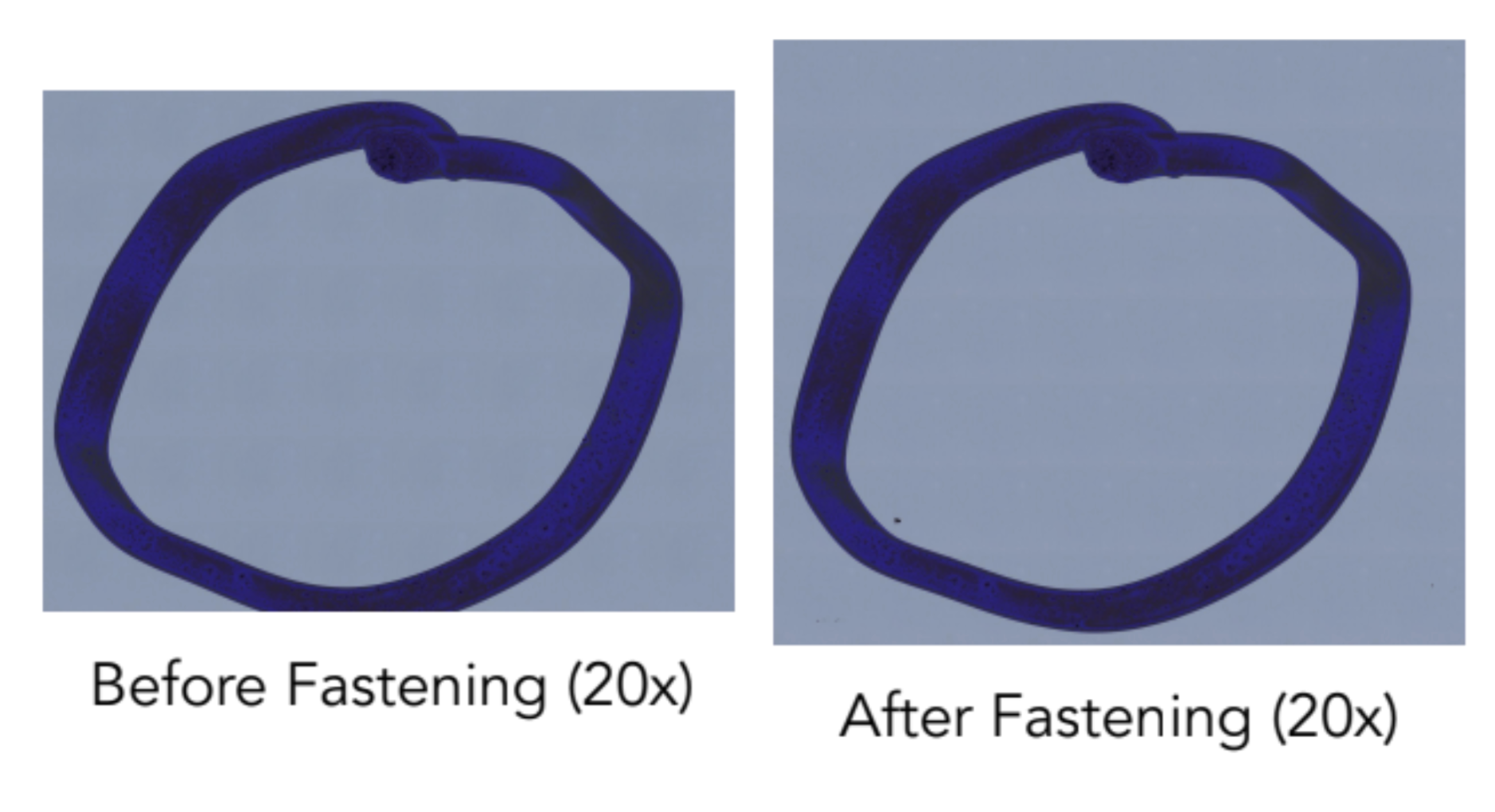

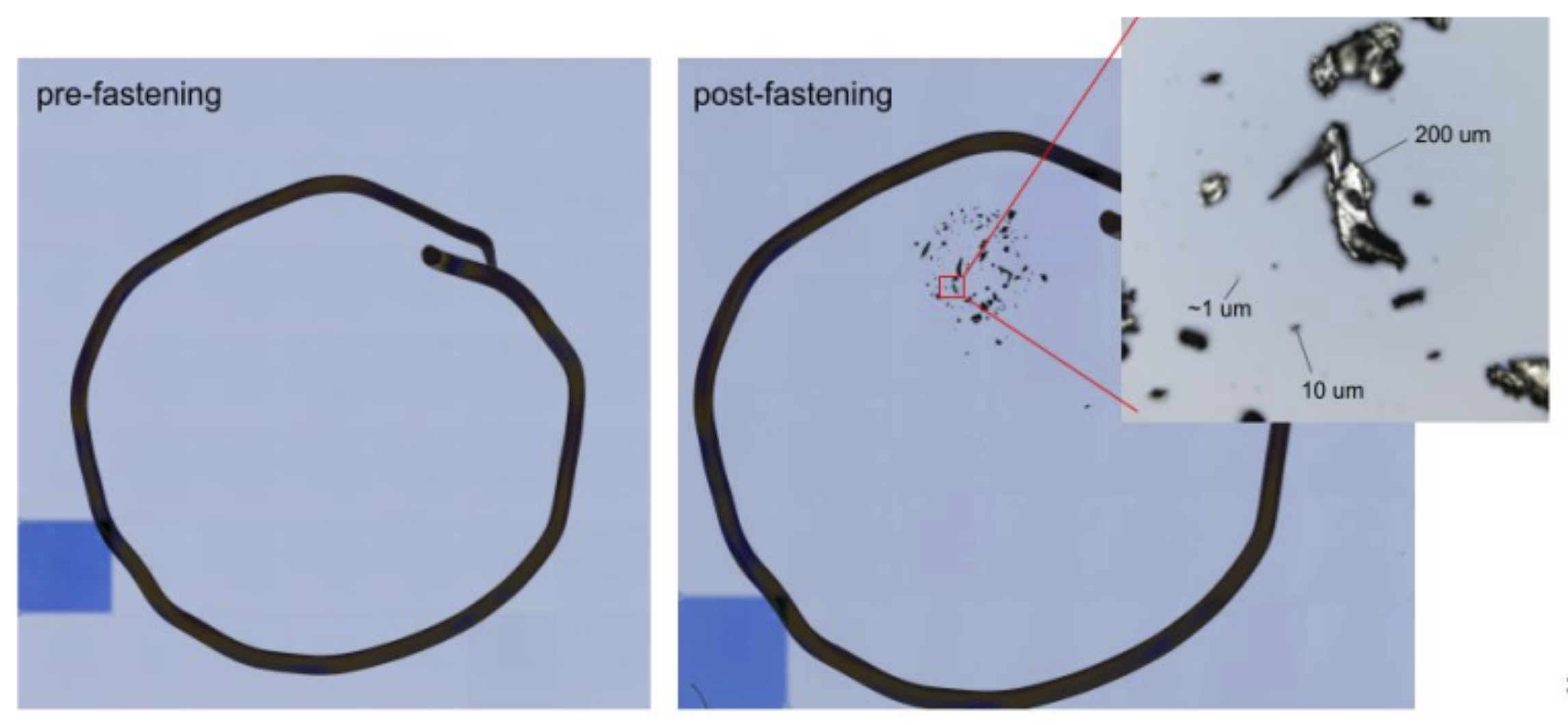

The previous design also used steel thumbscrews, which left particles on the wafer with repeated use. I designed a custom quarter-turn fastener machined from PEEK with a steel press-fit pin to secure the top and bottom of the fixture. After testing 20 cycles of fastening and unfastening, the quarter-turn fastener produced significantly fewer particles on an empty wafer compared to the steel screws.

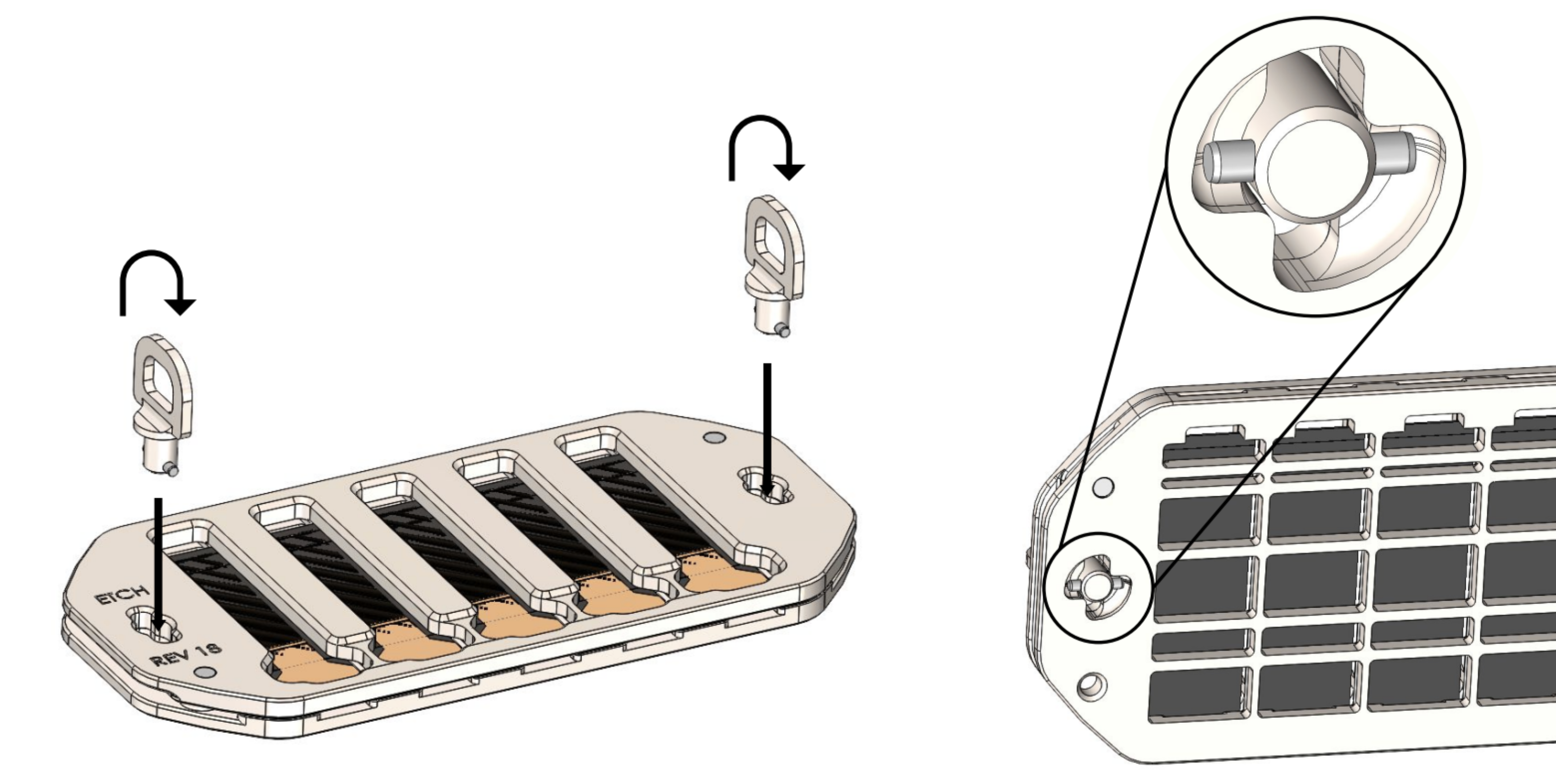

Fig. 4: Assembly of fixture with custom fastener for reduced particle generation

I ordered all machined components for a batch of 10 fixtures and fully assembled each unit. My internship ended shortly after, but I delivered the set ready for immediate use, ensuring a smooth handoff.

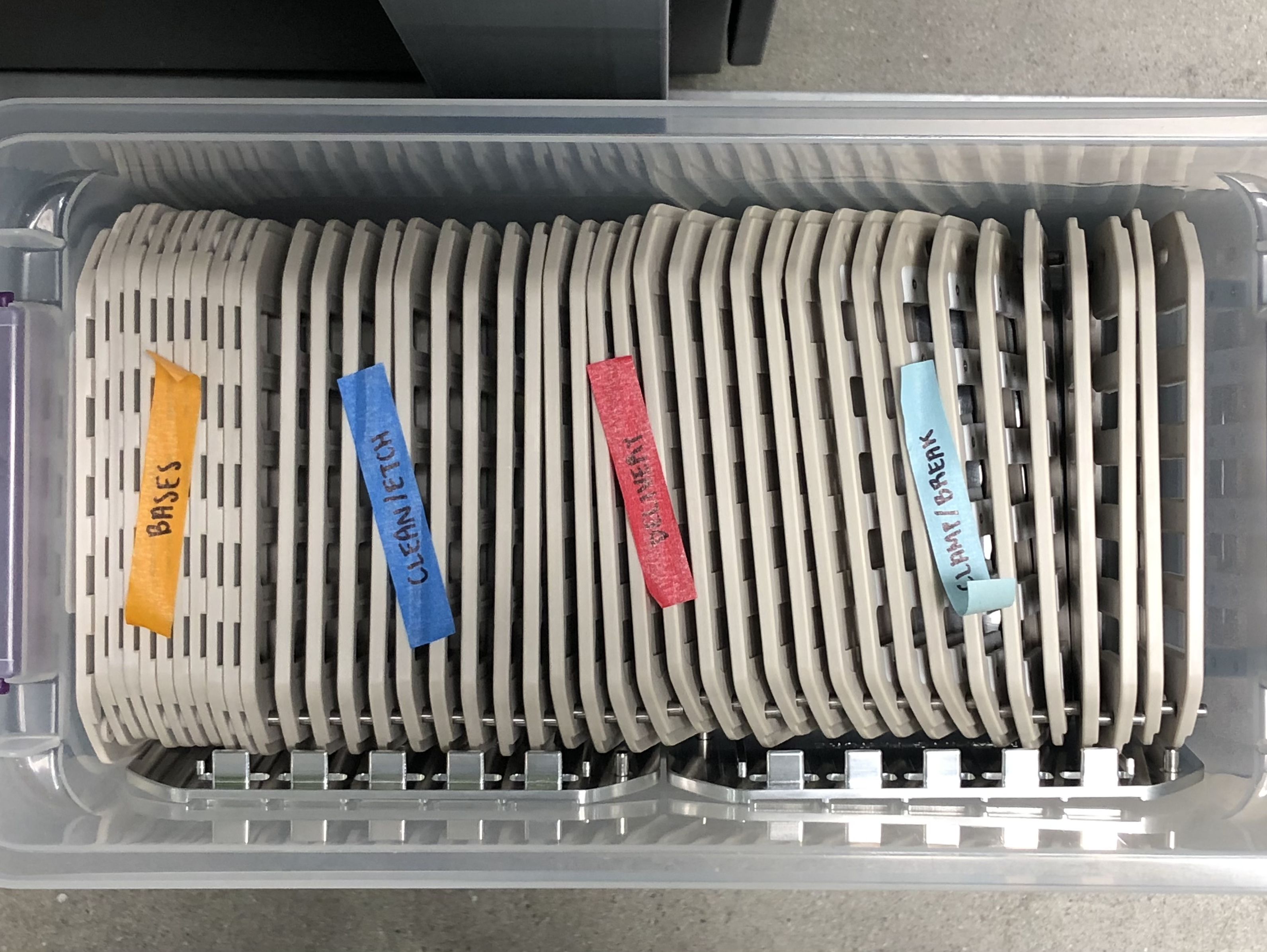

Fig. 7: Assembly of 10 units for production use
